DP-GF-A1 Particle Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-GF-A1
Particle Size Range:
1～500µm
Counting Range:
0~9999999 Grains
Injection Volume:
0.2～1000ml (accuracy 0.1ml)
Injection Volume Accuracy:
<±0.5%
Injection Speed:
5～80ml/min (arbitrary Setting)
Counting Accuracy:
Highlight:
DP-GF-A1 particle size analyzer
,drug testing particle analyzer
,laboratory particle measurement equipment
Product Description

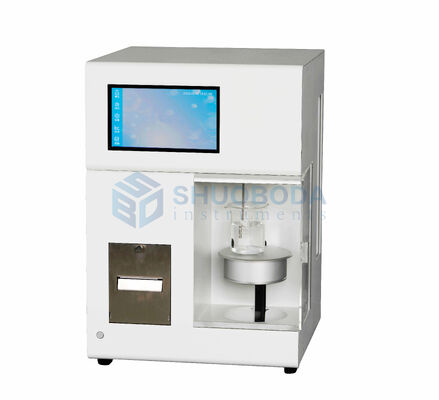

DP-GF-A1 Particle Analyzer
The DP-GF-A1 Particle Analyzer delivers exceptional performance for pharmaceutical and industrial applications, meeting rigorous international standards with precision and reliability.
Performance Features
- Compliant with multiple national standards including Chinese Pharmacopoeia, United States Pharmacopeia, and Pharmaceutical Packaging Materials Standards
- High-performance laser light source with energy compensation circuit ensures accurate testing of both colorless and colored clear samples
- Sample slits and pipelines constructed from imported 316L stainless steel and PTFE materials for direct detection of corrosive solutions including organic solvents and oil bases
- Visual dust-proof door design with automatic lifting system for safe and convenient sample handling
- High-performance processor with nearly 10,000 counting channels enables precise data collection
- Fully automatic calibration system improves efficiency and ensures reliable test data
- Calibration capability according to Chinese Pharmacopoeia, United States Pharmacopoeia, ISO21510 and other standards to meet international drug testing requirements
- Multi-level permission management functions for enhanced data security
- Android operating system with intuitive user interface for simplified operation
- Built-in database with massive storage capacity and comprehensive data statistical analysis functions
- RS232 and USB interfaces for external computer connectivity, facilitating data storage, classification, and retrieval
Technical Parameters
| Parameter | Specification |
|---|---|
| Channel Settings | 48 particle size channels simultaneously displayed, thousands of customizable particle sizes with 0.1µm accuracy |
| Particle Size Range | 1～500µm (selectable in sections) |
| Counting Range | 0~9,999,999 particles |
| Injection Volume | 0.2～1000ml (0.1ml accuracy) |
| Injection Volume Accuracy | <±0.5% |
| Injection Speed | 5～80ml/min (adjustable) |
| Counting Accuracy | <specified value ±5% |
| Channel Resolution | >95% |
| Relative Standard Deviation | RSD<1.5% (standard particles ≥1000 particles/ml) |
| Limit Detection Concentration | 18,000 capsules/ml |
| Stirring Speed | 0~1000 rpm |
| Working Temperature | 10～40℃ |
| Power Supply | 100-240VAC; 50/60Hz; <80W |
| Data Output | Dot matrix printer, RS232 interface, USB storage interface |
