DP-GF-D1 Particle Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-GF-D1
Test Range:
1~500µm
Count Range:
0~9999999 Particle
Sample Volume:
1ml~full Volume, Accuracy 0.1ml
Accuracy Of Sample Volume:
<0.5%
Sample Speed:
5~80ml/min, Arbitrary Set Up
Counting Accuracy:
< Required Value5%
Highlight:
DP-GF-D1 particle analyzer for drug testing
,drug testing particle analyzer with warranty
,portable particle analyzer for lab use
Product Description

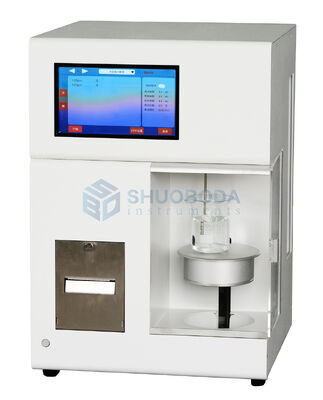

DP-GF-D1 Particle Analyzer
Professional particle analysis instrument designed for pharmaceutical and medical device testing applications.
Main Features
- Complies with international standards including China Pharmacopeia, America Pharmacopeia, Pharmaceutical package standard, and infusion devices GB8368
- Full volume testing with simulated clinical infusion process for objective and accurate data
- Original packaging and completely closed sampling system prevents contamination
- Advanced injection pump ensures continuous sampling with high precision and speed
- Automatic liquid level recognition eliminates manual sampling volume setting
- High-performance laser light source with energy compensation for precise testing of colorless and colored samples
- High-performance processor with nearly 10,000 counting channels for accurate data acquisition
- Fully automatic calibration with multiple built-in calibration curves
- Multi-level rights management for enhanced data security
- Android operating system with extensive storage and data analysis capabilities
- Laboratory operation platform access and network management functionality
Technical Specifications
- Channel Setup: 64 channels, thousands of particle sizes configurable, accuracy 0.1µm
- Test Range: 1~500µm
- Count Range: 0~9,999,999 particles
- Sample Volume: 1ml to full volume, accuracy 0.1ml
- Sample Volume Accuracy: <0.5%
- Sample Speed: 5~80ml/min, adjustable
- Counting Accuracy: <5% of required value
- Channel Resolution: >95%
- Relative Standard Deviation: RSD<1.5% (standard particle 1000 particle/ml)
- Optimal Detection Concentration: 0~18,000 particle/ml
- Mixing Speed: 0~1000r/min with adjustable impeller mixer
- Operating Temperature: 10~40℃
- Power Requirements: AC220V±10%; 50Hz; <80W
- Data Output: Built-in mini-printer; RS232 computer interface; USB storage interface
