DP-GF-8JDS Particle Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-GF-8JDS
Test Range:
1～500µm
Technical Number Range:
0~9999999 Pills
Injection Volume:
0.2ml～1000ml (accuracy 0.1ml)
Injection Volume Accuracy:
<±0.5% (0.2ml～1000ml)
Syringe Volume:
1ml, 2.5ml, 5ml, 10ml, 25ml Optional
Injection Speed:
2~100ml/min, Set Arbitrarily
Highlight:
DP-GF-8JDS particle analyzer drug testing
,particle analyzer with warranty
,drug testing equipment particle size
Product Description

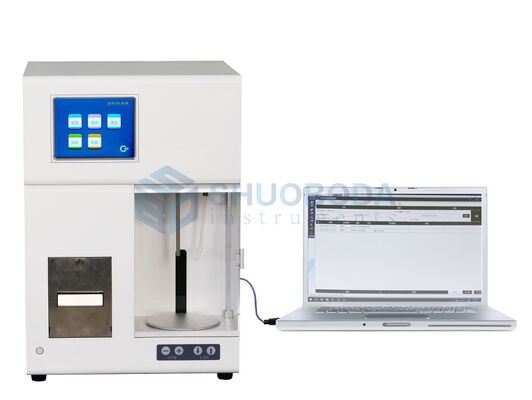

DP-GF-8JDS Particle Analyzer
Product Overview
The DP-GF-8JDS Particle Analyzer is a precision instrument designed for accurate measurement of insoluble particles in pharmaceutical and medical applications, meeting international standards and regulatory requirements.
Key Features
- Compliant with 2020 Chinese Pharmacopoeia, USP, and GB8368 infusion equipment standards
- High-performance laser light source with energy compensation for accurate testing of clear and colored samples
- Precision syringe pump sampling system with adjustable injection volume and speed
- 316L and PTFE construction for compatibility with organic solvents and oil-based solutions
- Customizable channel settings with 0.1µm accuracy and multiple counting methods
- Built-in calibration curves for multiple international standards
- Specialized testing program for small-volume injections with automatic conversion to per-container results
- Frictionless mixer with adjustable speed for uniform particle distribution
- Color touchscreen interface with Chinese input and real-time data display
- Built-in drug and medical device name database
- Comprehensive data management with audit trail capabilities
Technical Specifications
| Parameter | Specification |
|---|---|
| Channel Settings | Sixteen channels, customizable particle sizes, 0.1µm accuracy |
| Test Range | 1-500µm |
| Particle Count Range | 0-9,999,999 particles |
| Injection Volume | 0.2ml-1000ml (0.1ml accuracy) |
| Injection Volume Accuracy | <±0.5% (0.2ml-1000ml) |
| Syringe Volume Options | 1ml, 2.5ml, 5ml, 10ml, 25ml |
| Injection Speed | 2-100ml/min, adjustable |
| Counting Accuracy | <specified value ±5% |
| Channel Resolution | >95% |
| Relative Standard Deviation | RSD<1.5% (standard particles ≥1000 particles/ml) |
| Detection Concentration | 0-18,000 particles/ml |
| Stirring Speed | 0-2000 rpm, adjustable propeller type |
| Operating Temperature | 10-40°C |
| Power Supply | AC220V±10%; 50Hz; <80W |
| Data Output | Color LCD touchscreen, built-in dot matrix printer, RS232 interface |
