DP-GF-RS Particle Analyzer, 1~500µm
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-GF-RS
Particle Size Range:
1~500µm
Counting Range:
0~9999999 Grains
Injection Volume:
0.2～1000ml (accuracy 0.1ml)
Injection Volume Accuracy:
<±0.5%
Injection Speed:
5～80ml/min
Counting Accuracy:
Highlight:
DP-GF-RS particle analyzer 1-500µm
,laboratory particle size analyzer
,high precision particle measurement tool
Product Description

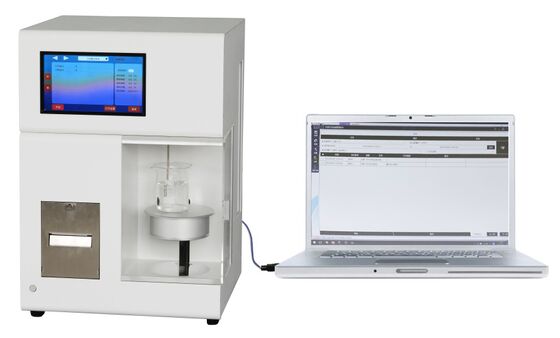

DP-GF-RS Particle Analyzer, 1~500µm
Product Overview
The DP-GF-RS Particle Analyzer delivers high-precision particle size analysis for pharmaceutical applications, meeting international standards including Chinese Pharmacopoeia and United States Pharmacopoeia requirements.
Performance Features
- Compliance: Meets insoluble particle detection requirements of Chinese Pharmacopoeia and United States Pharmacopoeia for injections, sterile powders, and infusion equipment
- Specialized Testing: Dedicated program for fat emulsion injection testing with photoresist method, compliant with Chinese Pharmacopoeia and Ministry of Health standards
- Precision Optics: High-performance laser light source with energy compensation ensures accurate testing of both colorless and colored clear samples
- Corrosion Resistance: 316L stainless steel and PTFE sampling components enable testing of organic solvents, oil matrices, and weak acid/alkali solutions
- Advanced Processing: High-performance processor with nearly 10,000 counting channels for superior data collection accuracy
- Automated Calibration: Fully automatic calibration system improves efficiency while ensuring test data reliability
- Multi-Standard Compliance: Calibration available for CHP, USP, ISO21510 standards, meeting international pharmaceutical testing requirements
- Data Integrity: Audit trail functionality ensures electronic data integrity with comprehensive retrieval capabilities
- Security Management: Multi-level authority management protects data security and meets computerized system audit requirements
- User Experience: Android operating system with intuitive interface for simplified operation
- Data Management: Built-in mass storage database with statistical analysis functions
- Connectivity: RS232 and USB interfaces for external computer connection and data management
Technical Specifications
| Parameter | Specification |
|---|---|
| Channel Settings | 64 particle size channels, customizable thousands of particle sizes, accuracy 0.1µm |
| Particle Size Range | 1~500µm (selectable sensors by section) |
| Counting Range | 0~9,999,999 particles |
| Injection Volume | 0.2～1000ml (accuracy 0.1ml) |
| Injection Volume Accuracy | <±0.5% |
| Injection Speed | 5～80ml/min |
| Counting Accuracy | <specified value ±5% |
| Channel Resolution | >95% |
| Relative Standard Deviation | RSD<1.5% (standard particles ≥1000 particles/ml) |
| Limit Detection Concentration | 18,000 particles/ml |
| Stirring Speed | 0~1000 rpm |
| Working Temperature | 10～40℃ |
| Power Supply | 100-240VAC; 50/60Hz; <80W |
| Data Output | Dot matrix printer, RS232 interface, USB storage interface |
