DP-GF-DS1 Particle Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-GF-DS1
Diameter Range:
1～500µm
Counting Range:
0~9999999 Grains
Injection Volume:
0.2～1000ml (accuracy 0.1ml)
Injection Volume Accuracy:
<±0.5%
Injection Speed:
5～80ml/min
Counting Accuracy:
Highlight:
DP-GF-DS1 particle analyzer for drug testing
,drug testing particle analyzer equipment
,particle analyzer with warranty
Product Description

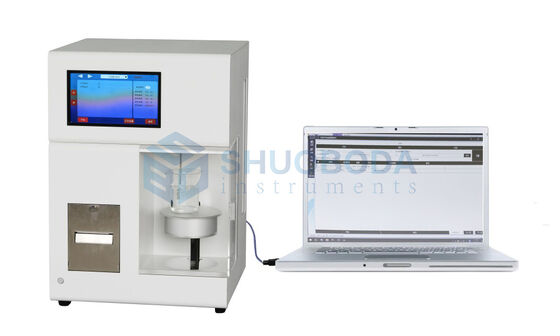

DP-GF-DS1 Particle Analyzer
The DP-GF-DS1 Particle Analyzer is an advanced laboratory instrument designed for precise particle analysis in pharmaceutical and industrial applications.
Performance Characteristics
Upgraded model based on DP-GF-8JDS, compliant with multiple international standards including Chinese Pharmacopoeia 2020, United States Pharmacopeia, and GB8368-2018
High-performance laser light source with energy compensation for accurate testing of colorless and colored clear samples
316L stainless steel and PTFE sampling components for direct analysis of corrosive solutions including organic solvents and oil matrices
Automatic lifting system with flexible sampling needle for irregular packaging inspection
High-performance processor with nearly 10,000 counting channels for precision data collection
Fully automatic calibration system ensuring reliable test data
Calibration compliant with Chinese Pharmacopoeia, USP, ISO21510 standards for international testing requirements
Comprehensive audit trail functionality for electronic data integrity and retrieval
Multi-level authority management for data security and computerized system compliance
Android operating system with intuitive user interface
Built-in database with extensive storage and statistical analysis capabilities
RS232 and USB interfaces for external computer connectivity and data management
Visual dust-proof door design to prevent environmental sample contamination
Technical Parameters
| Parameter | Specification |
|---|---|
| Channel Settings | 64 particle size channels, customizable thousands of particle sizes, accuracy 0.1µm |
| Diameter Range | 1～500µm |
| Counting Range | 0~9,999,999 particles |
| Injection Volume | 0.2～1000ml (accuracy 0.1ml) |
| Injection Volume Accuracy | <±0.5% |
| Injection Speed | 5～80ml/min |
| Counting Accuracy | <specified value ±5% |
| Channel Resolution | >95% |
| Relative Standard Deviation | RSD<1.5% (standard particles ≥1000 particles/ml) |
| Limit Detection Concentration | 18,000 particles/ml |
| Stirring Speed | 0~1000 rpm |
| Working Temperature | 10～40℃ |
| Power Supply | 100-240VAC; 50/60Hz; <80W |
| Data Output | Dot matrix printer, RS232 interface, USB storage interface |
