DP-WP-1 particulate pollution testing platform
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-WP-1
Test Quantity:
1-10 Pieces
Particle Size Range:
10~100µm
Injection Volume:
2~500ml
Injection Volume Accuracy:
±0.5% (500ml)
Counting Accuracy:
±10% Of Specified Value
Power Supply:
AC220V, 50Hz, 110W
Highlight:
particulate pollution testing platform
,drug testing equipment with warranty
,DP-WP-1 pollution testing equipment
Product Description

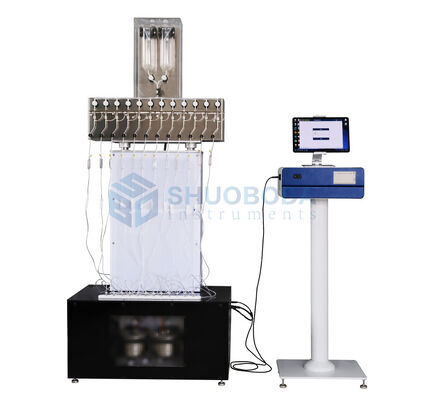

DP-WP-1 Particulate Pollution Testing Platform
The DP-WP-1 particulate pollution testing platform addresses the complex requirements of GB 8368 Disposable Infusion Set standards for particle contamination detection. Traditional methods involve time-consuming, labor-intensive eluent preparation that is prone to human error. Our automated platform streamlines the entire process, enabling intelligent one-stop operation for elution, collection, and detection of up to 10 infusion sets simultaneously.
The platform operates autonomously without requiring personnel supervision during testing, significantly reducing labor costs while improving detection efficiency and ensuring consistent, standardized testing procedures across all infusion sets.
Main Features
- Compliant with GB 8368-2018 standard requirements for infusion equipment particulate contamination detection
- One-click standardized testing operation without manual intervention, saving manpower
- Customizable testing functions to accommodate diverse user requirements
- Fully enclosed pipeline system prevents external contamination from affecting test results
- High versatility compatible with infusion tubes featuring different connector types and puncture devices
- Windows operating system with advanced human-computer interaction capabilities and peripheral expansion support
- Built-in database with massive storage capacity for retrieval, analysis, and statistical reporting
- Multi-level account management with permission settings and integrated reporting functions
- Scan input support with multiple printing options (portable and desktop) for test reports
Technical Parameters
| Parameter | Specification |
|---|---|
| Test Quantity | 1-10 pieces |
| Counting Channels | 64 channels, customizable particle sizes with 0.1μm accuracy |
| Particle Size Range | 10~100μm |
| Injection Volume | 2~500ml |
| Injection Volume Accuracy | ±0.5% (500ml) |
| Counting Accuracy | ±10% of specified value |
| Standard Deviation | <2% (standard particle concentration ≥ 1000 particles) |
| Limit Detection Concentration | 10000 capsules/ml |
| Power Supply | AC220V, 50Hz, 110W |
