DP-GF-9D Particle Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-GF-9D
Particle Size Range:
1～500µm
Counting Range:
0～9999999 Grains
Injection Volume:
0.2～6500ml (accuracy 0.1ml)
Injection Volume Accuracy:
<±0.5%
Injection Speed:
5～80ml/min
Counting Accuracy:
<±5% Of Specified Value
Highlight:
DP-GF-9D particle analyzer
,drug testing particle analyzer
,particle analyzer for lab testing
Product Description

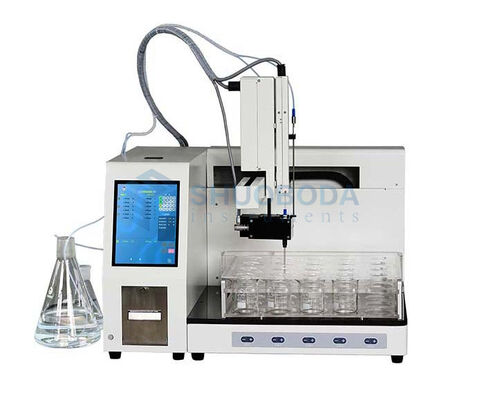

DP-GF-9D Particle Analyzer
Performance Features
- Complies with Chinese Pharmacopoeia, USP, BP, EP, JP standards and GB 8368 infusion set requirements
- High-performance laser light source with energy compensation for accurate testing of clear and colored samples
- 316L stainless steel and PTFE sampling components for direct testing of corrosive solutions including organic solvents
- Precision 3D robotic arm enables fully automated multi-sample testing with intelligent operation
- Dual-channel sampling system provides continuous sampling with high precision and speed
- High-performance processor with nearly 10,000 counting channels for precise data collection
- Fully automatic calibration ensures reliable test data and improved efficiency
- Calibration compliant with Chinese Pharmacopoeia, USP, ISO21501 standards for international testing requirements
- Automatic cleaning function supports fully automated testing workflow
- Optional dilution function adapts to various testing requirements
- Permission management system ensures data security
- Optional scanner gun for automatic sample number identification
Technical Parameters
| Parameter | Specification |
|---|---|
| Channel Settings | 64 simultaneous particle size channels, customizable thousands of sizes with 0.01µm accuracy |
| Particle Size Range | 1-500µm (segment selection) |
| Counting Range | 0-9,999,999 particles |
| Injection Volume | 0.2-6500ml (0.1ml accuracy) |
| Injection Volume Accuracy | <±0.5% |
| Injection Speed | 5-80ml/min |
| Counting Accuracy | <±5% of specified value |
| Channel Resolution | >95% |
| Relative Standard Deviation | RSD<1.5% (standard particles ≥1000 particles/ml) |
| Limit Detection Concentration | 18,000 capsules/ml |
| Test Quantity | 1-20 cups |
| Stirring Speed | 0-1000 rpm, adjustable in sections |
| Working Temperature | 10-40℃ |
| Power Supply | 100-240VAC; 50/60Hz; <80W |
| Data Output | Dot matrix printer, RS232 interface, USB storage interface |
