SCM170 Portable Surface Contamination Monitor
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
SCM170
Detector:
GM Tube
Measurement Type:
X-ray, Gamma-ray (γ)
Display:
3.2-inch Color LCD; Resolution: 320×240; Backlit
Sensitivity:
≥2 Cps (at 137Cs, 1 μSv/h)
Dose Equivalent Rate Range:
0.1 μSv/h ~ 100 MSv/h
Energy Range:
48 KeV ~ 3 MeV
Product Description

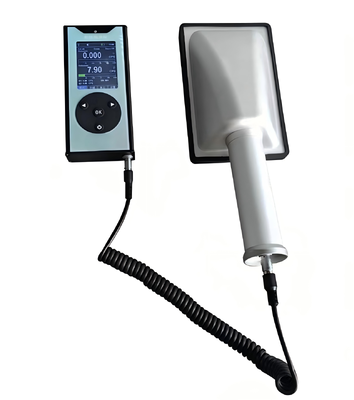

SCM170 Portable Surface Contamination Monitor
The SCM170 Portable Surface Contamination Monitor is designed for comprehensive radiation detection in nuclear facilities, environmental protection, public security, customs, healthcare, and industrial applications. This advanced instrument enables simultaneous measurement of alpha (α) and beta (β) surface contamination on various surfaces including floors, walls, tables, personnel clothing, and skin.
Key Features
- New plastic scintillator detector requiring no inflation
- Simultaneous α and β/γ measurement capability
- β/γ background monitoring and compensation with adjustable alarm thresholds
- Large 200cm² detection area
- 3.2-inch color LCD display with automatic backlight sensing
- User-friendly interface with multiple display units (cps, Bq, Bq/cm²)
- Lightweight, compact design for one-handed operation
- Password-protected advanced menu system
- Built-in nuclide library with customizable learning function
Technical Specifications
| Main Unit Parameters | |
| Detector | GM Tube |
| Measurement Type | X-ray, Gamma-ray (γ) |
| Display | 3.2-inch Color LCD (320×240 resolution) with backlight |
| Sensitivity | ≥2 cps (at 137Cs, 1 μSv/h) |
| Dose Equivalent Rate Range | 0.1 μSv/h ~ 100 mSv/h |
| Accumulated Dose Range | 0.01 μSv ~ 10 Sv |
| Energy Range | 48 keV ~ 3 MeV |
| Relative Intrinsic Error | ≤±15% (at 137Cs) |
| α/β Surface Contamination Probe | |
| Detector | Composite Scintillator (ZnS(Ag) + Plastic Scintillator) |
| Detection Window Area | 170 cm² |
| Detection Efficiency | α: ≥45% (2π geometry); β: ≥55% (2π geometry) |
| Counting Range | α: 0 ~ 99,999 cps; β: 0 ~ 50,000 cps |
| Background | α ≤ 0.1 cps; β ≤ 10 cps |
| Electrical Characteristics | |
| Communication Interface | RS-485 |
| Power Supply | Built-in rechargeable lithium battery |
| Operating Time | >24 hours continuous operation |
| Environmental Characteristics | |
| Operating Temperature | -41°C to +50°C |
| Storage Temperature | -41°C to +50°C |
| Relative Humidity | ≤90% at 35°C |
| Protection Class | IP65 |
| Mechanical Characteristics | |
| Dimensions | Probe: 330 × 125 mm; Main Unit: 170 × 80 × 30 mm |
| Weight | 1150 g (total system) |
Applications
- Health and hygiene monitoring and assessment
- Hospital nuclear medicine department monitoring
- Environmental protection, customs, and border control
- Counter-terrorism emergency response and law enforcement
- Nuclear power plant routine monitoring and emergency response
- Radiometric analysis of construction materials
- Third-party testing institution capacity building
Compliant with GB/T 5202-2008, GB/T 8993-1998, GB/T 10257-2001 standards and various environmental test requirements.
