HFC Hand And Foot Surface Contamination Monitor For Nuclear Medicine Departments
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Hand Surface Contamination Monitor
,Foot Surface Contamination Monitor
,Hand And Foot Contamination Monitor

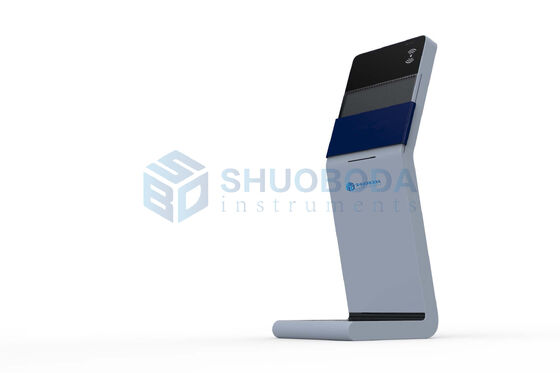

HFC Hand and Foot Surface Contamination Monitor
Product Description
HFC Hand and Foot Surface Contamination Monitor (hereinafter referred to as the monitoring system) is mainly used to detect the safety of personnel in nuclear medicine departments radiopharmaceutical plants, irradiation centers and other radioactive plants, focusing on the detection of radioactive contamination on the surface of the key parts of the person's hands and feet. When alpha and beta rays are detected on the surface of a person's hands and feet, the instrument will sound an alarm and indicate the leve of contamination on the hands and feet to ensure that the person leaves without contamination
Functional features
- 4 thin plastic scintillator + ZnS(Ag) detectors, total area 1800 cm2
- Industrial control machine controlled, windows operating system
- 10.1" LCD touch screen, visual display of contaminated areas, voice prompts for measurement steps, audible and visual alarms
- IC card reader, personal identification
- Ergonomic and comfortable to use. hand detector with automatic sliding lid to avoid secondary contamination
- RJ45 network port,4G communication, WIFI communication
- Can be connected to a monitoring center for remote monitoring
Application areas
- Sanitary access exits of nuclear power plant control areas
- Sanitary access exits of nuclear medical and scientific research laboratories
- Sanitary access exits of nuclear energy facility plant control areas
Technical specifications
|
Radiation properties |
|
|
Probes |
4 plastic scintillators + ZnS(Ag) detector |
|
Detector size |
Hands :20cm x 18cm Feet :34cm x 17cm |
|
Detector area |
Approx.1800cm2 |
|
Energy range |
a: 3MeV~10 MeV; β:50 keV~3 MeV |
|
Surface Emissivity Response |
Hands : 241Am: ≥25%; 90Sr/ 90Y: ≥25%; Foot : 241Am: ≥ 15%, 90Sr/ 90Y: ≥ 15% |
|
Lower detection limit |
Hands:241Am ≥25%;90Sr ≥25% ;Feet: 241Am≥ 15%;90Sr≥15% |
|
Structure features |
|
|
Size |
1500Hx480Wx670D(mm) |
|
Weight |
Approx.55kg |
|
Electrical characteristics |
|
|
Power supply |
220V AC /50Hz |
|
Show |
10.1" colour LCD touchscreen |
|
Communication interface |
RJ45, 4G, WIFI support |
