BD-D86-6536C Distillation Tester (Low Temperature)
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D86-6536C
Power Supply:
AC 220V±10%, 50 Hz
Heating Power Of Electric Furnace:
1000 W;
Volume Of Graduated Flask:
100 Ml With Scale Division Of 1 Ml;
Distillation Flask:
125 Ml;
Temperature Controlling Range:
0 ~ 60°C
Temperature Controlling Accuracy:
±0.5°C
Highlight:
Low Temperature Distillation Tester
,BD-D86-6536C Distillation Tester
Product Description

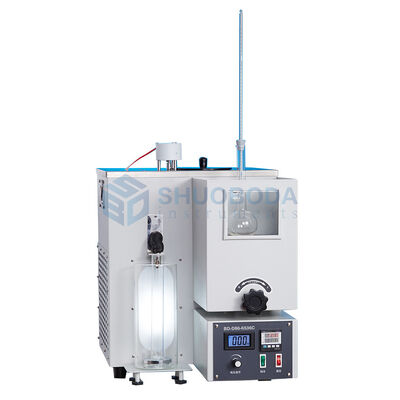

BD-D86-6536C Distillation Tester (Low Temperature)
Product Overview
The BD-D86-6536C Distillation Tester (Low Temperature) is designed and manufactured in accordance with National Standard GB/T6536 "Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure" and ASTM D86. It is suitable for determining distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvents, naphtha, diesel oil, distillate, and similar petroleum products.
This low-temperature petroleum products distillation tester utilizes a single distillation system, making it an ideal solution for low-temperature petroleum distillation testing requirements.
Main Technical Features
- Electrical components are controlled by a dedicated control case
- Control case is constructed from cold rolled steel with an observation window and built-in furnace
- Electrical components are located in the lower section of the control case
- Furnace assembly consists of SiC furnace base, 1000W/220V heater, and SiC plate
- Furnace position can be adjusted via up/down knobs to align distillation flask with condensation tube opening
- Heating power can be adjusted using voltage adjustment knob
- Refrigeration bath is constructed from stainless steel and includes heating, refrigeration, temperature measurement, and stirring devices
- Stirring device is motor-driven
- Condensation tube dimensions comply with GB/T6536 standards
Technical Parameters
- Power supply: AC 220V±10%, 50 Hz
- Heating power of electric furnace: 1000 W
- Volume of graduated flask: 100 ml with scale division of 1 ml
- Distillation flask: 125 ml
- Thermometer: Total immersion rod type; scale ranges: -2 ~ +300°C and -2 ~ +400°C; scale divisions: 1°C
- Movable plate for electric device: SiC plate with hole diameters: Φ32, Φ38, and Φ50
- Temperature controller:
- Temperature controlling range: 0 ~ 60°C
- Temperature controlling accuracy: ±0.5°C
- Temperature display mode: Digitally displayed by LED
- Ambient temperature: ≤+30°C
- Relative humidity: ≤85%
- Refrigeration system: New type refrigerated compressor
- Total power consumption: Not more than 2500 W
- Dimensions: 0.72 × 0.59 × 0.66 meters
Standard Accessories
| No. | Item | Unit | Qty | Remarks |
|---|---|---|---|---|
| 1 | Distillation flask (125 ml) | Piece | 1 | |
| 2 | Thermometer (－2∼300)°C, (－2∼400)°C, scale division is 1°C | Piece | 1 for each | |
| 3 | Glass container (Φ100mm×240mm) | Piece | 1 | |
| 4 | Silica gel stopper (3#) | Piece | 2 | |
| 5 | Silica gel stopper (4#) | Piece | 2 | |
| 6 | Silicon carbide board, pore size Φ32mm, Φ38mm, Φ50mm | Piece | 1 for each | |
| 7 | Graduated flask (100 ml) | Piece | 1 | |
| 8 | Iron block | Piece | 1 | |
| 9 | Test platform (pad under the test vessel) | Piece | 1 | |
| 10 | 6 A fuse (Φ5×20) | Piece | 2 | |
| 11 | 15A fuse (Φ5×20) | Piece | 2 | |
| 12 | Stopping ring for thermometer (1 #) | Piece | 4 | |
| 13 | Observation window glass | Piece | 2 | |
| 14 | Condensate pipe outlet cover | Piece | 2 |
