Double column automatic atmospheric distillation tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D86-003ZII
Temperature Measurement Range:
Room Temperature ~ 400℃
Resolution:
0.1℃
Water Bath Constant Temperature Range:
0~60℃ (imported Compressor Refrigeration)
Peripheral Temperature Of Internal Recycling Measuring Cylinder:
5～50℃
Distillation Rate:
4～5ml/min
Volume Detection Range:
0～150ml, Resolution: 0.1ml
Highlight:
double column distillation tester
,automatic atmospheric distillation tester
,distillation tester with warranty
Product Description

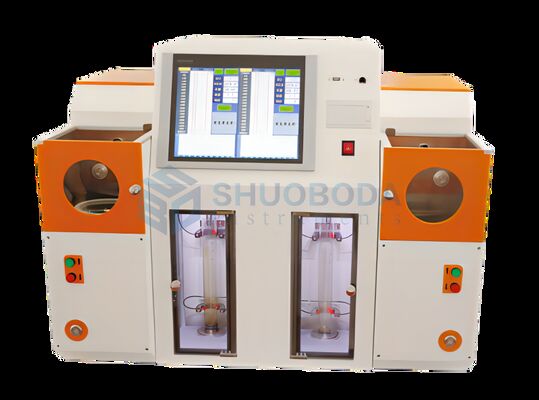

Double Column Automatic Atmospheric Distillation Tester
The BD-D86-003ZII Double Column Automatic Atmospheric Distillation Tester is a sophisticated laboratory instrument designed for precise distillation analysis in industrial and manufacturing applications.
Applicable Standards
GB/T6536, ASTM D86, GB/T255, GB/T7534, GB/T3146
Performance Characteristics
- Independent operation: Each column can conduct experiments separately
- Intelligent heating management system ensures distillation rate compliance with experimental method requirements
- User-configurable recording points for customized data collection
User-Settable Recording Points
- Record recovery volume corresponding to specific temperatures
- Record temperature corresponding to specific recovery volumes
- Automatic recording of standard national specification points
Four Experiment End Methods
- End Point: Experiment concludes when endpoint is detected
- Dry Point End: Experiment concludes when dry point is detected
- Temperature End: Experiment concludes at user-set temperature with printed output
- Volume End: Experiment concludes at user-set volume with printed output
The system features automatic atmospheric pressure detection and includes over-temperature protection for safe operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Measurement Range | Room Temperature ~ 400℃ (Resolution: 0.1℃) |
| Water Bath Constant Temperature Range | 0~60℃ (Imported Compressor Refrigeration) |
| Measuring Cylinder Peripheral Temperature | 5～50℃ |
| Distillation Rate | 4～5ml/min |
| Volume Detection Range | 0～150ml (Resolution: 0.1ml) |
| Temperature Measuring Element | PT100 (Original German JUMO Sensor) |
| Display | 1024*600 Resolution True Color Screen with Chinese Characters |
| Heating Method | Low Voltage DC Heating System |
| Printing | Embedded Micro Printer |
| Power Consumption | Less than 1kW |
| Refrigeration Method | Compressor Refrigeration |
| Ambient Temperature | 15～25℃ |
| Operation Method | Program Start with Simple Operation |
| System Management | Laboratory LIMS System Support |
