BD-D1078-6536D Automatic Distillation Apparatus
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1078-6536D
Temperature Range Of Bath::
0 ~ 60°C
Temperature Control Precision Of Bath:
±0.5°C
Temperature Range Of Receiving Chamber:
0 ~ 60°C
Temperature Control Precision Of Receiving Chamber:
±1°C
Distillation Heater:
1000W, 24V
Power Supply:
AC(220±10%) V, 50Hz
Highlight:
BD-D1078-6536D Automatic Distillation Apparatus
,6536D Automatic Distillation Apparatus
,Automatic Distillation Apparatus
Product Description

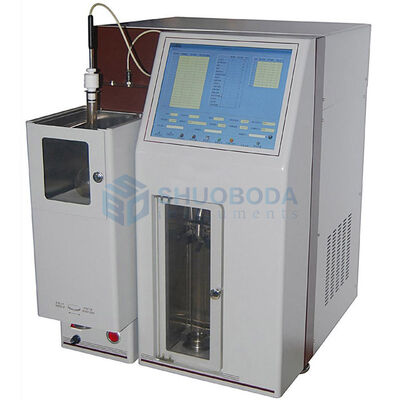

BD-D1078-6536D Automatic Distillation Apparatus
The BD-D1078-6536D Automatic Distillation Apparatus is designed and manufactured in accordance with standards GB/T 6536, GB/T 7534, ASTM D 86, ASTM D 850, and ASTM D 1078. This advanced instrument is used to determine the distillation characteristics of motor gasoline, aviation gasoline, jet fuel, diesel oil, distillate fuel, naphtha, and solvents with special boiling points. It features advanced technology with easy operation and high cost performance.
Key Features
- Built-in microcomputer with advanced IPC technology and 12.1-inch light-touch LCD for intuitive operation
- Intelligent SCM control for automated heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, and printing
- Real-time display of vapor temperature curve, heater temperature curve, and distillation rate curve for immediate quality assessment
- Imported compressor and temperature sensor with automatic liquid level tracking system for reliable, repeatable results
- Customizable standards and distillation procedures to accommodate different oil samples and customer requirements
- Automatic barometric pressure detection and correction to eliminate atmospheric pressure influence on test results
- Vapor temperature calculation capability by inputting residue amount after testing
- Anti-freezing solution in cold bath with internal circulation stirrer and liquid level sensor for optimal bath conditions
- Integrated automatic fire-extinguishing device for enhanced safety during operation
Technical Specifications
- Temperature range of bath: (0 ~ 60)°C
- Temperature control precision of bath: ±0.5°C
- Temperature range of receiving chamber: (0 ~ 60)°C
- Temperature control precision of receiving chamber: ±1°C
- Distillation heater: 1000W, 24V
- Distillate liquid detection: (0 ~ 100)mL, resolution 0.01mL
- Distillate liquid detection precision: ≤0.1mL
- Power supply: AC(220±10%) V, 50Hz
- Maximum power consumption: 2500W
- Working environment: Ambient temp.(10 ~ 35)°C; RH≤80%
- Dimension: 500mm×530mm×660mm
- Net weight: 85kg
Standard Accessories
| No. | Item | Unit | Qty | Remarks |
|---|---|---|---|---|
| 1 | 15A fuse Φ6 × 30 | Piece | 2 | |
| 2 | Steam temperature sensor | Piece | 1 | |
| 3 | Sensor positioning device | Set | 1 | |
| 4 | Oil receiving pipe | Piece | 1 | |
| 5 | Water receiving bowl | Piece | 1 | |
| 6 | Condenser tube cleaning pull rope | Piece | 1 | |
| 7 | Condenser rubber stopper | Piece | 2 | |
| 8 | Condenser envelope | Piece | 1 | |
| 9 | Observation window | Piece | 1 | |
| 10 | Flask plate (quartz) Aperture Ф38, Ф50 | Piece | 1 for each | |
| 11 | Fire trachea (Ф8 PU tube, L = 3m) | Set | 1 | |
| 12 | Power line | Piece | 1 | |
| 13 | Electric furnace bracket casing | Piece | 6 | |
| 14 | Diversion shovel | Piece | 2 | |
| 15 | Cylinder 100ml | Piece | 1 | |
| 16 | Cylinder base | Piece | 1 | |
| 17 | Flask (quartz) 125ml | Piece | 1 | |
| 18 | Cylinder 5mL | Piece | 1 | |
| 19 | Ο type ring Ф21.5 × 2.65 | Piece | 2 | Used for cylinder base |
| 20 | Ο type ring Ф12 × 2.65 | Piece | 2 | For the sensor positioning device |
| 21 | Micro-printer (data cable, power line) | Set | 1 |
