BD-D86-003ZI Single column automatic atmospheric distillation tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D86-003ZI
Temperature Measurement Range:
RT~ 400℃, Resolution: 0.1℃
Water Bath Constant Temperature Range:
0~60℃ (imported Compressor Refrigeration)
Peripheral Temperature Of Internal Recycling Measuring Cylinder:
5～50℃
Distillation Rate:
4～5ml/min
Volume Detection Range:
0～150ml
Resolution:
0.1ml
Highlight:
single column distillation tester
,automatic atmospheric distillation tester
,distillation tester with warranty
Product Description

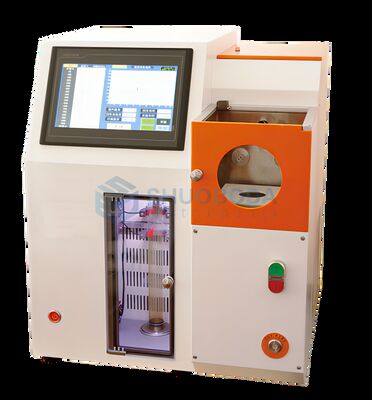

BD-D86-003ZI Single Column Automatic Atmospheric Distillation Tester
Applicable Standards
GB/T6536, ASTM D86, GB/T255, GB/T7534, GB/T3146
Performance Characteristics
Intelligent heating management system ensures that the distillation rate meets the requirements of the experimental method.
User-Configurable Recording Points
- Users can set and record the recovery volume corresponding to the temperature
- Users can set and record the temperature corresponding to the recovery volume
- Automatically records recording points specified by national standards
Four Experiment End Methods
- End Point: End the experiment when the end point is detected
- Dry Point End: End the experiment when dry point is detected
- Temperature End: End the experiment according to the temperature value set by the user and print output
- Volume End: End the experiment according to the volume value set by the user and print output
Atmospheric pressure is automatically detected, with automatic over-temperature protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Measurement Range | Room temperature ~ 400℃ (Resolution: 0.1℃) |
| Water Bath Constant Temperature Range | 0~60℃ (imported compressor refrigeration) |
| Peripheral Temperature of Internal Recycling Measuring Cylinder | 5～50℃ |
| Distillation Rate | 4～5ml/min |
| Volume Detection Range | 0～150ml (Resolution: 0.1ml) |
| Temperature Measuring Element | PT100 (original temperature measuring sensor from German JUMO) |
| Display | 1024×600 resolution, true color large screen Chinese character display |
| Heating Method | Low voltage DC heating system |
| Printing | Embedded micro printer |
| Power Consumption | Less than 1kW |
| Refrigeration Method | Compressor refrigeration |
| Ambient Temperature | 15～25℃ |
| Operation Method | Program starts, simple operation |
| System Management | Supports laboratory LIMS system |
