BD-D86-003Z Petroleum product automatic distillation tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D86-003Z
Working Power Supply:
AC220V±10% 50Hz Standard 10A Plug
Electric Furnace Heating Power:
1KW
Measurement Temperature Range:
Room Temperature To 400 ° C
Measurement Accuracy:
± 0.1 ° C
Condensate Tube Cold Bath Temperature:
0 ° C ~ 60 ° C
Temperature Control Accuracy:
± 0.1 ° C
Highlight:
petroleum product distillation tester
,automatic distillation tester
,BD-D86-003Z distillation tester
Product Description

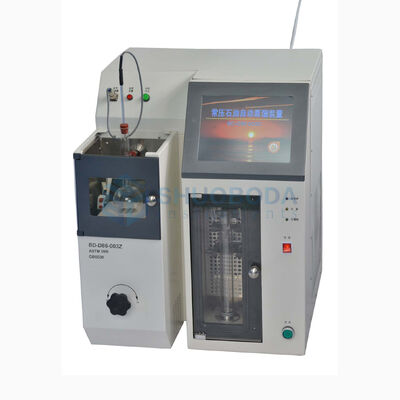

BD-D86-003Z Petroleum Product Automatic Distillation Tester
Applicable Standards
GB/T6536, ASTM D86, D1078, D850
Performance Characteristics
- Suitable for natural gasoline, motor gasoline, aviation gasoline, jet fuel, special boiling point solvents, naphtha, kerosene, diesel, gas oil distillate fuels and similar petroleum products
- Desktop integrated design with compact, reasonable structure
- Left-side heating furnace with lift mechanism and high-temperature insulation observation window
- 10-inch large touch LCD display with full Chinese human-computer interaction interface
- Measuring cylinder recovery chamber with adjustable temperature from 10°C to 50°C
- German imported compressor refrigeration for fast cooling and low noise operation
- US Haydon motor and Japan KEYENCE photoelectric tracker for precise liquid level tracking
- Optical fiber sensor for initial boiling point detection
- Recovery cylinder diameter calibration with 100ml standard liquid
- Electric furnace heating power automatically controlled with independent input value adjustment
- Completely enclosed cooling bath with circulating medium for safety and environmental protection
- Comprehensive data display including initial boiling point temperature, recovery volumes, temperature curves, and endpoint data
- Automatic atmospheric pressure detection and temperature correction to standard atmospheric pressure
- Experiment termination based on steam temperature or recovery volume with user-defined limits
- Optional fire protection system using inert nitrogen gas
Technical Specifications
| Model | BD-D86-003Z |
| Working Power Supply | AC220V±10% 50Hz standard 10A plug |
| Electric Furnace Heating Power | 1KW |
| Measurement Temperature Range | Room temperature to 400°C |
| Measurement Accuracy | ±0.1°C |
| Condensate Tube Cold Bath Temperature | 0°C to 60°C |
| Temperature Control Accuracy | ±0.1°C |
| Vapor Temperature Sensor | German imported glass PT100 |
| Recovery Volume Measurement Range | 0ml to 100ml |
| Recovery Volume Measurement Accuracy | ±0.1ml |
| Recovery Room Temperature Control Range | 10°C to 50°C |
Standard Accessories
| 125ml Distillation Flask | 2 pcs |
| Distillation Graduated Cylinder (without scale) | 2 pcs |
| Flask Support Plate | 2 pcs |
| Silicone Plug | 4 pcs |
| Drainage Sheet | 1 pc |
| Sensor (imported from Germany) | 1 stick |
| Clean the Leads | 1 pc |
| Cylinder Cap | 1 pc |
| Print Paper | 2 rolls |
| Fuse | 2 pcs |
| Power Cord | 1 pc |
| Instructions | 1 copy |
| Certificate | 1 copy |
