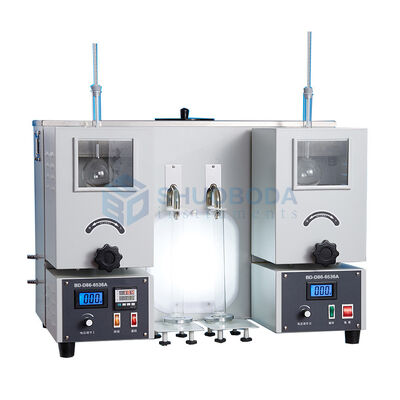

BD-D86-6536A Petroleum product Distillation Tester (Double Units)
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D86-6536A
Working Power Supply:
AC (220±10%)V, 50Hz.
Electric Furnace Heating Power:
1300W×2, Heating Power Is Continuously Adjustable.
Volume Of Measuring Cylinder:
100ml, Graduation Is 1ml.
Distillation Flask:
125mL, In Line With The Requirements Of GB/T 6536.
Thermometer:
Fully Immersed Rod Type, With Scale Ranges Of (-2~300)℃ And (-2~400)℃ Respectively.
Electric Furnace Movable Plate:
Made Of Silicon Carbide Plate, With Apertures Of φ32㎜, φ38㎜ And φ50㎜ Respectively.
Highlight:
petroleum distillation tester double units
,distillation tester for petroleum products
,double unit petroleum distillation tester
Product Description
BD-D86-6536A Petroleum Product Distillation Tester (Double Units)
The petroleum product distillation tester (double-tube type) is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T 6536 "Petroleum Product Distillation Determination Method". It is suitable for testing gasoline, aviation gasoline, jet fuel according to the standard of GB/T 6536. Distillation determination of gasoline fuels, solvents with special boiling points, naphtha, diesel, distillate fuels and similar petroleum products.
The petroleum product distillation tester (double-tube type) is not only suitable for use in high-frequency, multi-sample units, but also allows general users to speed up the test. It is an ideal petroleum product distillation test instrument.
Main Technical Features
- Double-tube working mode, which can conduct independent testing of a single tube or test two samples of the same specification or different specifications simultaneously, greatly improving work efficiency
- Two sets of independent digital temperature controllers, heaters and electric stirrers form a condensation tube constant temperature bath with temperature range from (room temperature + 10)℃ to 60℃
- Special heating furnace ensures test safety with continuously adjustable heating power to meet test requirements
Main Technical Parameters and Indicators
| Parameter | Specification |
|---|---|
| Working Power Supply | AC (220±10%)V, 50Hz |
| Electric Furnace Heating Power | 1300W×2, heating power continuously adjustable |
| Measuring Cylinder Volume | 100ml, graduation is 1ml |
| Distillation Flask | 125mL, compliant with GB/T 6536 requirements |
| Thermometer | Fully immersed rod type with scale ranges of (-2~300)℃ and (-2~400)℃ |
| Electric Furnace Movable Plate | Silicon carbide plate with apertures of φ32㎜, φ38㎜ and φ50㎜ |
| Water Bath Temperature Control | Temperature range: (room temperature +10)℃ ~ 60℃ Control accuracy: ±0.5℃ Display: LED digital display |
| Ambient Temperature | ≤+35℃ |
| Relative Humidity | ≤85% |
| Power Consumption | ≤4000W |
| Overall Dimensions | 760㎜×520㎜×500㎜ (length×width×height) |
