BD-D1401-9168A Petroleum Products Vacuum Distillation Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1401-9168A
Working Power Supply:
AC (220V±10%) V 50Hz;
Machine Power:
Power ≤ 1800W;
Flask Heating Furnace Power:
(0~500)W Continuously Adjustable;
Condensation Circulating Water Temperature Control Range:
RT +5℃ (minimum 30℃) ~ 80℃±3℃, Continuously Adjustable;
Cold Trap Working Mode:
Semiconductor Refrigeration. Minimum Temperature: ≤-40℃;
Absolute Pressure Setting Range:
2mmHg; 5mmHg; 10mmHg; 20mmHg; 50mmHg;
Highlight:
petroleum vacuum distillation tester
,distillation tester for petroleum products
,BD-D1401-9168A distillation tester
Product Description

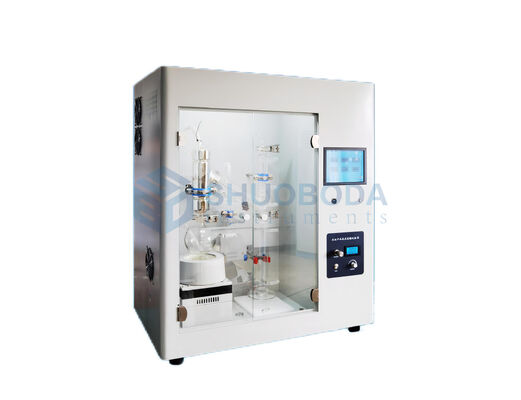

BD-D1401-9168A Petroleum Products Vacuum Distillation Tester
The BD-D1401-9168A Petroleum Products Vacuum Distillation Tester is an advanced intelligent testing instrument developed in compliance with the People's Republic of China standard GB/T 9168. This integrated system measures the boiling point range of petroleum products that partially or completely evaporate at maximum liquid temperatures up to 400°C under reduced pressure conditions.
Key Technical Features
- Built-in industrial computer with 10.1-inch color LCD touch screen interface
- Automated vacuum control system maintains high vacuum stability throughout testing
- Integrated cold trap utilizing semiconductor refrigeration technology for compact design
- Electric lift control with screen-operated buttons and built-in safety limit functions
- Automatic condensate recovery system for convenient measurement and removal
- Nitrogen interface prevents air entry into vacuum system after testing completion
- Automatic temperature conversion from detected to normal pressure temperature
- Data storage with USB export capability and direct printing functionality
Technical Specifications
- Power Supply: AC (220V±10%) V 50Hz
- Maximum Power: ≤ 1800W
- Flask Heating Power: (0~500)W continuously adjustable
- Condensation Water Temperature: Room temperature +5℃ (minimum 30℃) ~ 80℃±3℃
- Cold Trap Technology: Semiconductor refrigeration, minimum temperature ≤-40℃
- Absolute Pressure Settings: 2mmHg, 5mmHg, 10mmHg, 20mmHg, 50mmHg
- Pressure Measurement Range: (2.00~170.00) mmHg±0.01 mmHg automatic constant pressure
- Pressure Control Accuracy: <0.01Kpa (0.075mmHg) below 1Kpa, ≤1% of absolute pressure above 1Kpa
