BD-D1401-0165B LCD touch screen Semi-automatic Vacuum Distillation Apparatus
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1401-0165B
Working Power Supply:
AC (220±10%)V 50Hz;
Machine Power Consumption:
≤1700W;
Flask Heating Furnace Power:
(0~1300)W Continuously Adjustable;
Heating Power Of The Receiver Measuring Cylinder Chamber:
350W, Automatically Controlled By The System;
Temperature Control Point Of The Receiver Measuring Cylinder Chamber:
(room Temperature ~ 99) ℃ ± 3 ℃, Continuously Adjustable;
Vacuum Residual Pressure Setting Range:
(2~99)mmHg±0.1mmHg;
Highlight:
LCD touch screen distillation tester
,semi-automatic vacuum distillation apparatus
,distillation tester with LCD display
Product Description

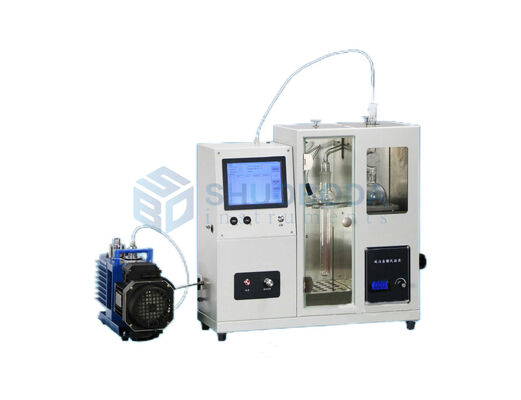

BD-D1401-0165B LCD Touch Screen Semi-automatic Vacuum Distillation Apparatus
The BD-D1401-0165B Semi-automatic Vacuum Distillation Apparatus is engineered in compliance with the People's Republic of China industry standard SH/T O165 92 (confirmed in 2006) for "High Vacuum Distillation Determination of Petroleum Products in the High Boiling Point Range." This instrument is specifically designed for analyzing high boiling point range petroleum products including wax oils and lubricating oils.
Key Technical Features
- Integrated industrial computer for real-time data upload, storage, and analysis
- High-precision temperature sensor for automatic oil vapor temperature detection
- LCD touch screen interface for parameter input, modification, and display
- Fully automated operation with manual distillate volume reading only
- Custom quartz distillation flask for enhanced test safety
Technical Specifications
| Working Power Supply | AC (220±10%)V 50Hz |
| Power Consumption | ≤1700W |
| Flask Heating Furnace Power | (0~1300)W continuously adjustable |
| Receiver Measuring Cylinder Heating | 350W, automatically controlled by system |
| Receiver Temperature Control | (Room temperature ~ 99)℃ ± 3℃, continuously adjustable |
| Vacuum Residual Pressure Setting | (2~99)mmHg ± 0.1mmHg |
| Vacuum Residual Pressure Measurement | (2~150) mmHg ± 0.1mmHg automatic constant pressure |
| Operating Environment | Temperature: 15℃~35℃, Relative Humidity: ≤85% |
| Instrument Dimensions | 600mm × 230mm × 610mm (L×W×H) |
| Net Weight | 30kg |
