BD-D1401-0165A Vacuum Distillation Apparatus
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1401-0165A
Power Supply:
AC(220±10%)V, 50Hz
Heating Power:
Heater For Distillation Flask: 1000W，Heater For Receiver: 350W
Heating Furnace Of Distillation Flask:
0 ~ 1000W, Adjustable
Temperature Control Point Of Air Bath Of Receiver:
Ambient To 100°C, Adjustable
Temperature Sensor Of Air Bath:
Pt100,RTD
Temperature Control Mode:
Digital Temperature Controller
Highlight:
vacuum distillation apparatus tester
,distillation tester BD-D1401-0165A
,laboratory vacuum distillation equipment
Product Description

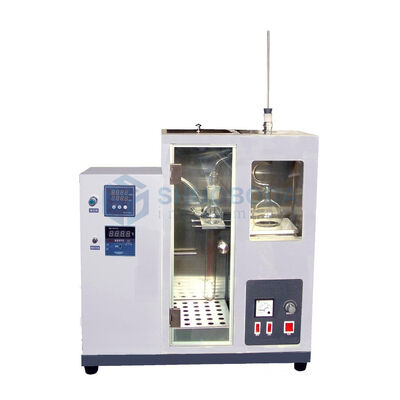

BD-D1401-0165A Vacuum Distillation Apparatus
The BD-D1401-0165A Vacuum Distillation Apparatus is engineered according to industrial standard SH/T 0165-92 for testing distillation characteristics of petroleum products with high boiling point ranges. This instrument is ideal for analyzing wax oils, lubricating oils, and other high-boiling-point petroleum products.
Key Technical Features
- High-accuracy pressure sensor and digital pressure gauge for precise measurements
- Advanced design and technology compliant with SH/T 0165-92 standards
- Continuously adjustable heating furnace power with rapid cooling system for efficient testing cycles
- High-performance vacuum pump with maximum residual pressure of 2mmHg
Technical Specifications
- Power Supply: AC (220±10%)V, 50Hz
- Heating Power: Distillation flask heater: 1000W, Receiver heater: 350W
- Distillation Flask Heating Furnace: (0 ~ 1000)W, adjustable
- Receiver Air Bath Temperature Control: Ambient to 100°C, adjustable
- Air Bath Temperature Sensor: Pt100 RTD
- Temperature Control Mode: Digital temperature controller
- Temperature Control Precision: Set temperature ±1°C
- Buffer Vessel Capacity: 1000ml
- Maximum Residual Pressure: 2mmHg
- Digital Pressure Gauge: (0~200)mmHg
- Air Bath Illumination: Energy saving lamp
- Working Conditions: Ambient temperature: (5 ~ 35)°C, Relative Humidity: < 85%
- Dimensions: 580mm × 230mm × 605mm
Standard Accessories
| No. | Item | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Vacuum pump (2L) | Set | 1 | |
| 2 | Quartzose distillation flask | Piece | 1 | |
| 3 | Measuring cylinder | Piece | 1 | |
| 4 | Thermometer (0 ~ 360°C) | Piece | 1 | |
| 5 | Stop collar for thermometer (1#) | Piece | 2 | |
| 6 | Stopper (9#) | Piece | 1 | |
| 7 | 10A fuse (Ф5×20) | Piece | 2 | |
| 8 | PU pipe, Φ6(OD)×Φ4 (ID) | Meter | 2 | Connect vacuum pump to distillation apparatus |
| 9 | U-shape tube | Piece | 1 | |
| 10 | Suction head | Piece | 1 | |
| 11 | Sealing grease | Case | 1 |
