BD-D1401-255 Distillation Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1401-255
Power Supply:
AC(220±10%)V,50Hz
Dimension:
710mm×240mm×470mm
Maximum Power Consumption:
1100W
Working Environment:
RT-10~+35°C. Relative Humidity ≤85%
Thermometer:
0~360°C,division Value 1°C
Condensate Tank:
Made Of Stainless Steel Material. The Condenser Pipe Is Made Of Brass And Diameter Is Ø16mm×1mm.
Highlight:
BD-D1401-255 distillation tester
,laboratory distillation tester
,precision distillation testing equipment
Product Description

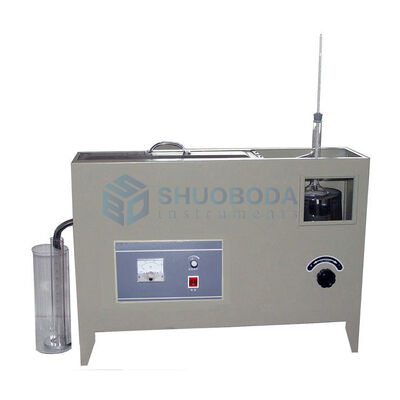

BD-D1401-255 Distillation Tester
The BD-D1401-255 Distillation Tester is designed and manufactured in compliance with National Standard GB/T255 "Test Methods for Distillation Characteristics of Petroleum Products" and Industry Standard SH/T 0121 "Technical Condition for Petroleum Products Distillation Tester". This instrument is suitable for determining the distillate characteristics of engine fuel, solvent oil, and light petroleum products.
Main Technical Features
- All-in-one machine design with rational layout and easy operation
- Heating furnace features easy and stable vertical adjustment
- Stainless steel water chamber for excellent corrosion resistance
- Continuously adjustable heating power via electronic voltage regulator
Technical Parameters
- Power Supply: AC(220±10%)V, 50Hz
- Distillation Flask: Hard glass construction with heat resistance exceeding 500°C; Ball diameter: φ69mm±1mm; Neck diameter: φ16mm±1mm; Branch pipe to neck angle: 75°±3°
- Thermometer: Range (0~360)°C, division value 1°C
- Condensate Tank: Stainless steel body with brass condenser pipe (Ø16mm*1mm)
- Heat Adjustment: Integrated heating device, thermal control circuit and control panel; 1000W power with continuous heating rate adjustment
- Measuring Cylinder & Weight: 10ml and 100ml cylinders; Carbon steel weight prevents cylinder floating
- Working Environment: Room temperature -10~+35°C; Relative humidity ≤85%
- Maximum Power Consumption: 1100W
- Dimensions: 710mm*240mm*470mm
Standard Accessories
| No. | Item | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Distillation flask (125ml) | Piece | 1 | |
| 2 | Thermometers (0 ~ 360 °C, each scale division is 1.0 °C) | Piece | 1 | |
| 3 | Glass cylinder (100 ml, 10 ml) | Piece | 1 for each | |
| 4 | 100*240 Glass cylinder | Piece | 1 | |
| 5 | Foundry weight | Block | 1 | |
| 6 | Rubber stopper (8 #, 4 #) | Piece | 2 for each | |
| 7 | Stopping ring for thermometer (1#) | Piece | 4 | |
| 8 | 6A fuse (Ф5 * 20) | Piece | 2 | |
| 9 | PTFE TAPE | Roll | 1 | |
| 10 | Silicon carbide gasket (30,50, band gap) | Block | 1 for each |
