BD-ASP-XW6 Fiber Bulk Density Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-ASP-XW6
Funnel:
Height 115mm, Upper Inner Diameter 55mm±1mm, Lower Inner Diameter 35mm±1mm
Metal Cup:
Height 80mm±1mm, Inner Diameter 40mm±1mm
Volume:
100mL
The Distance Between The Lower Edge Of The Funnel And The Upper Surface Of The Metal Cup:
40mm
Highlight:
Bulk Density Tester
,BD-ASP-XW6 Bulk Density Tester
,XW6 Fiber Bulk Density Tester
Product Description

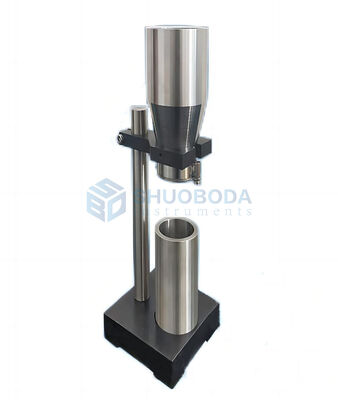

BD-ASP-XW6 Fiber Bulk Density Tester
Product Overview
The BD-ASP-XW6 fiber bulk density tester is designed and manufactured in accordance with the relevant requirements of "Appendix N Bulk Density Test of Granular Wood Fibers" in the transportation industry standard JT/T 533-2020 "Fibers for Asphalt Pavement". This instrument uses the test method described in the standard to obtain the loose density value of granular wood fiber through calculation.
Main Features
- Stainless steel funnels and stainless steel metal cups adopt special processing technology to ensure smooth inner surfaces and meet test requirements
- The test funnel discharge valve has reasonable design, reliable discharge and durability
- The base of the instrument is stable, the bracket is firm, there is no shaking during the test, and the test results are reliable
- The base is equipped with a horizontal bubble. Adjusting the four horizontal adjustment feet can make the base horizontal and the column vertical, thereby ensuring the accuracy of the test results
Technical Specifications
| Component | Specification |
|---|---|
| Funnel | Height 115mm, upper inner diameter 55mm±1mm, lower inner diameter 35mm±1mm |
| Metal Cup | Height 80mm±1mm, inner diameter 40mm±1mm |
| Volume | 100mL |
| Funnel to Cup Distance | 40mm between lower edge of funnel and upper surface of metal cup |
