BD-D1298-1884 Petroleum Products Density Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1298-1884
Power Supply:
AC 220V±10%, 50 Hz;
Cubage Of Bath:
Ф300×380 Mm;
Heating Power:
700 W; 1000 W;
Temperature Controlling Range:
0°C ~ 100°C
Temperature Controlling Accuracy:
±0.2°C
Dimension:
560mm×380mm×580mm
Highlight:
Petroleum Products Density Tester
,BD-D1298-1884 Density Tester
Product Description
BD-D1298-1884 Petroleum Products Density Tester
Product Overview
The BD-D1298-1884 Petroleum Products Density Tester is designed and manufactured in accordance with the National Standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods)". This instrument is specifically designed to determine the density of liquid petroleum products using a densimeter.
Working Conditions
- Ambient temperature: -10°C to +40°C; temperature variation should not exceed ±2°C
- Relative humidity: ≤85%
- The instrument should be placed on a flat workbench during operation, and air convection should be minimized during testing
- For long-term storage, please keep the instrument in a dry environment
Technical Parameters
- Power supply: AC 220V±10%, 50 Hz
- Bath capacity: Ф300×380 mm
- Heating power: 700 W; 1000 W
- Temperature controller:
- Temperature control range: 0°C to 100°C
- Temperature control accuracy: ±0.2°C
- Temperature sensor: Industrial platinum resistance Pt100
- Thermometer: Total immersion mercury thermometer with scale division of 0.2°C
- Cylinder capacity: 500ml
- Dimensions: 560mm×380mm×580mm
Standard Accessories
| No. | Item | Unit | Qty |
|---|---|---|---|
| 1 | Thermometer (-20°C ~ 102°C, scale division is 0.2°C) | Piece | 1 |
| 2 | Density meter (10 pieces in a group) | Set | 1 |
| 3 | Sensor | Piece | 1 |
| 4 | Thermometer stopper (3#) | Piece | 2 |
| 5 | 500 ml test tube | Piece | 2 |
| 6 | Stopping ring for thermometer (1#) | Piece | 4 |
| 7 | Rubber stopper (21#) | Piece | 1 |
| 8 | Fuse 10A (Φ5×20) | Piece | 2 |
| 9 | Sample tube holder | Piece | 2 |

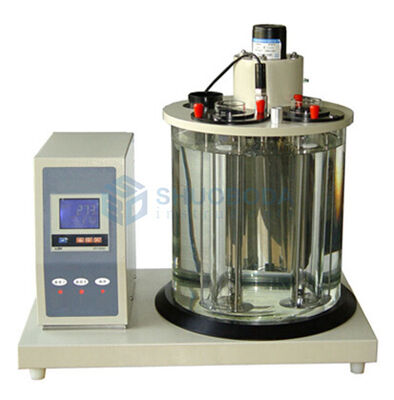

Product Image
