BD-ASP-0705 Compacted Asphalt Mixture Density Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-ASP-0705
Working Power Supply:
AC (220±10%) V, 50Hz
Inner Diameter Of Overflow Tank:
440mm×410mm×200mm
Circulating Water Pump Flow:
10L/min
Electronic Balance, Maximum Weighing:
15kg;
Weighing Sense:
0.1g
Water Bath Temperature Control Accuracy:
25±0.5℃
Highlight:
Asphalt Mixture Density Tester
,BD-ASP-0705 Density Tester
,Compacted Asphalt Mixture Density Tester
Product Description

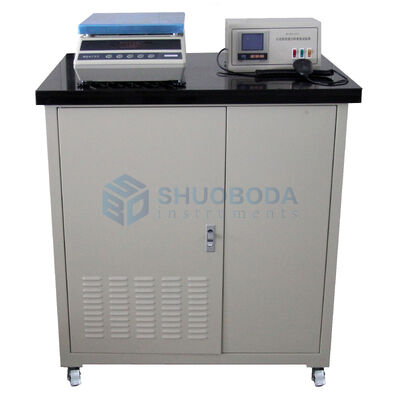

BD-ASP-0705 Compacted Asphalt Mixture Density Tester
Product Overview
This instrument is designed and manufactured in accordance with the People's Republic of China industry standard JTG E20-2011 "Testing Procedures for Highway Engineering Asphalt and Asphalt Mixtures." It specifically addresses the requirements specified in T 0705-2011 (Surface Dry Method), T 0706-2011 (Water Gravity Method), and T 0707-2011 (Wax Seal Method) for density testing of compacted asphalt mixtures.
Applications
- Surface dry method testing for various asphalt mixture specimens with water absorption rate ≤ 2% (T 0705 standard)
- Water gravity method testing for dense asphalt mixture specimens with water absorption < 0.5% (T 0706 standard)
- Wax seal method testing for asphalt concrete or asphalt gravel mixture specimens with water absorption rate > 2% (T 0707 standard)
- Weighing aerial mass of dry specimens and calculating gross volume relative density and density (T 0708 standard)
Technical Features
- Multi-functional design meeting requirements for surface dry, water weight, wax seal, and volume methods
- Microcomputer-controlled water bath temperature with simple, reliable operation
- Detachable electrical control box with aviation plug connections
- High-precision electronic balance with large measuring range and stable performance
- Stainless steel overflow water tank with automatic water level stabilization
- Electric lifting mechanism with push rod motor for smooth, quiet operation
- Composite rationalized board work surface providing stable platform
Technical Specifications
- Power Supply: AC (220±10%) V, 50Hz
- Overflow Tank Dimensions: 440mm × 410mm × 200mm (L×W×H)
- Circulating Water Pump Flow: 10L/min
- Electronic Balance: Maximum weighing 15kg; Sensitivity 0.1g
- Water Bath Temperature Control Accuracy: (25±0.5)℃
