BD-7600-A72 coulometric trace water analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-7600-A72
Measurement Range:
3μg～100mg
Electrolysis Speed:
2.4 Mg/min (maximum)
Resolution:
0.01μg
Accuracy:
10μg～1mgH2O ±3μg 0.3% Above 1mgH2O (excluding Sampling Error)
End Point Display:
Information Display, Buzzer Sound, End Point Indicator Light On
Power Supply Voltage:
AC220V±10%, 50Hz
Highlight:
coulometric trace water analyzer
,water content tester with warranty
,BD-7600-A72 water analyzer
Product Description

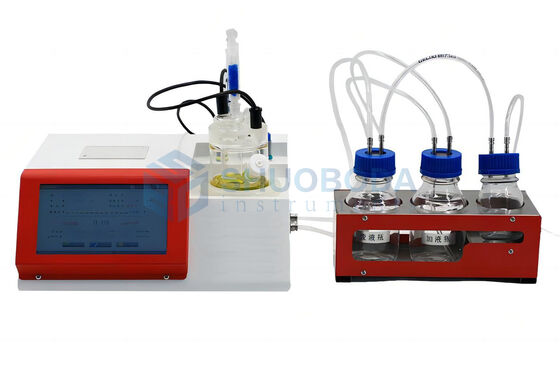

BD-7600-A72 Coulometric Trace Water Analyzer
The BD-7600-A72 coulometric trace water analyzer employs the classic Karl Fischer microcoulomb method. Based on electrolysis principles, the instrument detects the number of charges (coulombs) involved in the reaction and automatically converts this into corresponding water content measurements. This method delivers high testing accuracy with low operational costs, reliably measuring trace moisture in liquid, gas, and solid samples.
Featuring high sensitivity, precision, and reproducibility with low power consumption and energy-saving design, the analyzer includes a built-in battery for portable measurements. It is widely used across petroleum, chemical, power, pharmaceutical, commodity inspection, scientific research, and environmental protection industries.
Applicable Standards
GB/T11133, GB/T11146, GB/T7600, GB/T6023, GB/T6283, GB/T606
Instrument Features
- 7-inch LCD color touch screen display with automatic balance and intuitive user interface
- Menu-driven parameter input with computer and WiFi connectivity
- Multiple parameter prompts including test date, clock, differential detection, and automatic system deviation correction
- Automatic stirring, detection, and printing functions with simultaneous display of μg water and ppm units
- Simple operation with drain and liquid addition functions for accurate, stable testing
Technical Parameters
| Measurement Range | 3μg to 100mg |
| Electrolysis Speed | 2.4 mg/min (maximum) |
| Resolution | 0.01μg |
| Accuracy | 10μg to 1mg H₂O: ±3μg Above 1mg H₂O: 0.3% (excluding sampling error) |
| Endpoint Display | Information display, buzzer sound, endpoint indicator light |
| Display Clock | Year, month, day, hours, minutes, seconds (retentive on power failure) |
| Printer | 16-character dot matrix printing, 44mm paper width |
| Power Supply | AC220V ±10%, 50Hz |
