BD-D95-260A Water Content Tester (Double Units)
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | Negotiable |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D95-260A
Power Supply:
AC 220V±10%, 50 Hz;
Heating Power Of Electric Furnace:
1000W×2;
Heating Control:
By Bidirectional Silicon Controlled Rectifier;
Ambient Temperature:
≤35°C;
Relative Humidity:
≤85%;
Total Power Consumption:
Not More Than 2200 W;
Highlight:
BD-D95-260A water content tester
,petroleum water content analyzer
,double units moisture tester
Product Description

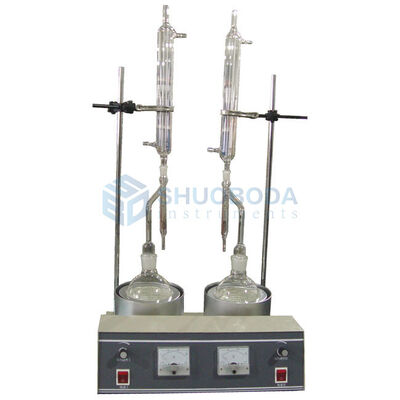

BD-D95-260A Water Content Tester (Double Units)
The BD-D95-260A Water Content Tester (Double Units) is manufactured and designed in compliance with GB/T260 Standard Test Method for Water in Petroleum Products and ASTM D95 Standard Test Method for Water in Petroleum Products and Bituminous Materials by Distillation. This instrument determines water content in petroleum products according to GB/T260 specifications and is also suitable for measuring water content in lubricating grease as per GB/T 512 Test Method for Water Content of Lubricating Grease. The double-unit structure enables simultaneous testing of two samples, enhancing laboratory efficiency.
Main Technical Features
- Fully compliant with GB/T260 standard requirements
- Reasonable gripper design for convenient installation and dismantlement
- Continuously adjustable heating power with intuitive voltmeter display
- Rational temperature control system
- Parallel testing capability for two samples to maximize working efficiency
Technical Parameters
- Power supply: AC 220V±10%, 50 Hz
- Electric furnace heating power: 1000W*2
- Heating control: Bidirectional silicon controlled rectifier
- Ambient temperature: ≤35°C
- Relative humidity: ≤85%
- Total power consumption: ≤2200 W
- Dimensions: 0.69*0.57*0.31 meters
Note: We can customize the electric jacket model for none naked fire test according to customer requirements.
Standard Accessories
| No. | Item | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Upright column | Piece | 2 | |
| 2 | Clamp holder of condensation tube | Piece | 2 | |
| 3 | Condensing tube | Piece | 2 | |
| 4 | Receiving tube | Piece | 2 | |
| 5 | Round-bottomed flask | Piece | 2 | |
| 6 | 10A fuse (Ф5 * 20) | Piece | 2 | |
| 7 | Rubber tube (Ф22*3) - 0.2 meters | Section | 1 | |
| 8 | Silicone tube (Ф12*2) - 12 meters | Piece | 1 | Cut when user needed |
| 9 | Connection head of the water inlet pipe | Piece | 1 | |
| 10 | Three way component | Piece | 1 | For water inlet shunt |
