BD-7600-A71 Portable Trace Moisture Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-7600-A71
Measuring Range:
3ug～200mg
Resolution:
0.1ug
Electrolysis Current:
0～400Ma
Standby Power Consumption:
4W
Maximum Power Consumption:
20W
Working Power Supply:
AC220V±10%, 50HZ
Highlight:
portable trace moisture analyzer
,water content tester with warranty
,BD-7600-A71 moisture analyzer
Product Description

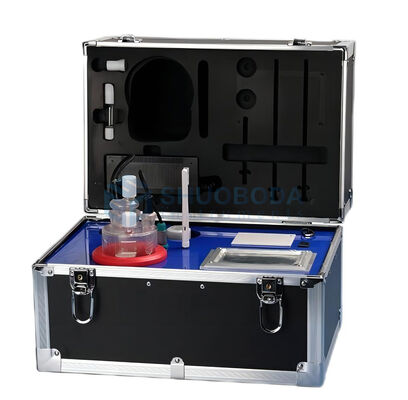

BD-7600-A71 Portable Trace Moisture Analyzer
The BD-7600-A71 Portable Trace Moisture Analyzer utilizes Karl Fischer microcoulomb electrometry for high testing accuracy and cost-effective operation. This instrument reliably measures trace moisture in liquid, gas, and solid samples with exceptional sensitivity, precision, and reproducibility. Featuring low power consumption and energy-saving design, it serves diverse applications in petroleum, chemical, power, commodity inspection, scientific research, and environmental protection sectors.
Compliance Standards
GB/T11133, GB/T11146, GB/T7600, GB/T6023, GB/T6283, GB/T606
Key Features
- Color LCD display with intuitive touch screen control
- Balance point drift compensation circuit for enhanced accuracy
- WIFI wireless connectivity for convenient data transmission and storage on mobile devices and PCs
- Time-stamped historical record storage capacity of 10,000 entries
- Intelligent self-test function with electrode open circuit and short circuit alarm
- Screen protection function to extend LCD lifespan
- Thread-locking electrolytic cell interface design for superior sealing and leak-proof portability
- 24V10Ah lithium battery pack providing over 10 hours of continuous operation
Technical Specifications
| Measuring Range | 3μg to 200mg |
| Accuracy | ±3μg for 3μg-1000μg range; ±0.3% for volumes exceeding 1000μg |
| Resolution | 0.1μg |
| Electrolysis Current | 0-400mA |
| Standby Power Consumption | 4W |
| Maximum Power Consumption | 20W |
| Power Supply | AC220V±10%, 50Hz |
| Dimensions | 370*240*180mm |
| Weight | Approximately 5kg |
