BD-D6304-139A fully automatic Karl-Fischer Coulomb trace water meter
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D6304-139A
Electrolysis Speed:
2.4 Mg Water/min
Electrolysis Current:
0-430 MA Automatic Control
Display Measurement Range:
0.01 Microgram Water-200 Mg Water
Water Content Measurement Range:
0.0001% (1ppm)-100%
Sensitivity:
0.01 Microgram Water
Power Supply:
AC220V±10% 50HZ±2.5HZ
Highlight:
fully automatic Karl Fischer water meter
,trace water content tester
,Coulomb method moisture analyzer
Product Description

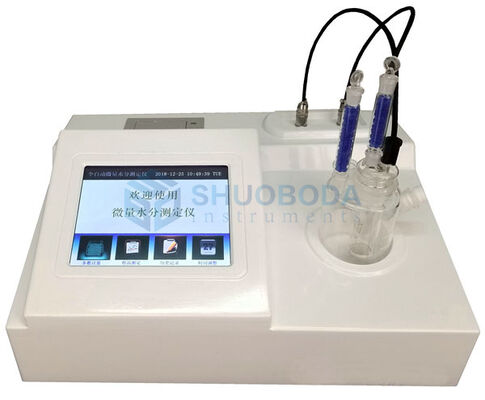

BD-D6304-139A Fully Automatic Karl-Fischer Coulomb Trace Water Meter
The BD-D6304-139A fully automatic Karl-Fischer Coulomb trace water meter utilizes the Karl-Fischer Coulomb method to detect moisture content in liquids, solids, and gases. This advanced instrument can measure moisture levels as low as 0.0001% and deliver results within 60 seconds, making it ideal for chemical, petroleum, power generation, scientific research, and railway industries.
Applicable Standards
GB/T 6283-2008, ASTM E1064-2008, GB/T 7600-1987, ASTM D 4928-00 (2010), ASTM D6304-2007, ISO 10337-1997, GB/T 11146-2009, GB/T 3727-2003, GB/T 5074-19885, GB/T 6023-2008, GB/T 7376-2008, GB/T 18619.1-2002, GB/T 18826-2002, SH/T 0246-1992, SH/T 0255-1992, ASTM E1064-2008, ASTM D4928-00 (2010), ASTM D6304-2007
Performance Characteristics
- Special "single-chip microcomputer and computer" composite control system for quick, automatic measurement with minimal setup
- 65K color touch LCD screen with high resolution (800×600 pixels) and integrated display/operation
- Elegant design with anti-static, corrosion-resistant surface for easy cleaning
- Blank current microprocessor automatic control compensation for rapid reagent equilibrium
- Powerful storage capacity for 1,000 experimental results with easy access
- Automatic calculation of multiple experimental result averages
- Automatic printing of comprehensive results including μg/ppm/percentage content/mg/L/sample name/experiment date
- Built-in drift compensation and automatic fault diagnosis functions
Application Areas
Liquids
- Chemical Industry: alcohols, ethers, esters, acids, alkanes, benzene, amines, organic solvents, phenols
- Petroleum & Power Industry: gasoline, diesel, lubricating oil, grease, insulating oil, transformer oil, turbine oil
- Pharmaceutical Industry: raw pharmaceutical materials
- Pesticide Industry: emulsifiers
- Other Industries: lithium battery electrolytes
Solids
Various inorganic salts, citric acid, explosives, paraffin, and other soluble solids
Gases
Natural gas, liquefied petroleum gas, Freon, butadiene, methyl chloride, and other gases
Technical Specifications
| Electrolysis Speed | 2.4 mg water/min |
| Electrolysis Current | 0-430 mA automatic control |
| Measurement Range | 0.01 μg water - 200 mg water |
| Water Content Range | 0.0001% (1ppm) - 100% |
| Sensitivity | 0.01 μg water |
| Accuracy | ±3μg (100-1000μg water); ±0.2% (above 1000μg water, excluding sampling error) |
| Stirring Speed | Controllable |
| Result Storage | 1,000 experiments |
| Printer | Low energy consumption high-speed thermal printer, 56mm paper width |
| Power Consumption | <40W |
| Dimensions | 360×310×135mm |
| Operating Environment | Temperature: 5℃-40℃, Humidity: <85% |
| Power Supply | AC220V±10% 50HZ±2.5HZ |
| Weight | 6kg |
