BD-D4006-8929A Crude Oil Water Content Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D4006-8929A
Power Supply:
AC(220±10%)V, 50Hz
Heater:
Heating Mantle Cap，500W×2，continuous Adjustment.
Distillation Flask:
1000 Ml
Receiver:
5ml，graduation Is 0.05 Ml
Condenser:
400mm±5mm
Ambient Temperature:
-10°C ~ +35°C
Highlight:
crude oil water content tester
,water content tester for crude oil
,BD-D4006-8929A water content tester
Product Description

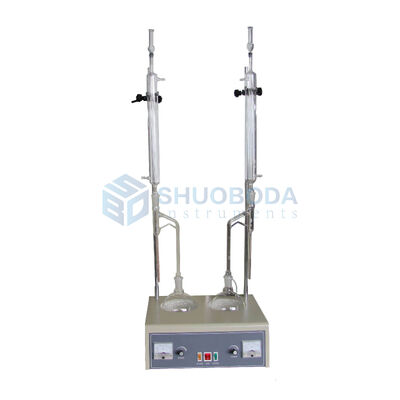

BD-D4006-8929A Crude Oil Water Content Tester
The BD-D4006-8929A Crude Oil Water Content Tester is engineered in compliance with the National Standard of People's Republic of China GB/T8929 Standard Test Method for Water Content in Crude Oil (Distillation method) and ASTM D4006 Standard Test Method for Water in Crude Oil by Distillation. This precision instrument is specifically designed for accurate determination of water content in crude oils.
Key Technical Features
- Desktop structure with dual testing units for simultaneous determinations
- Equipped with adjustable heating mantle cap for continuous power adjustment
- No exposed flames for enhanced operational safety
- Standard-compliant design of distillation flask, receiver, and condenser
Technical Specifications
| Power Supply | AC (220±10%)V, 50Hz |
| Heater | Heating mantle cap, 500W×2, continuous adjustment |
| Distillation Flask | 1000 ml |
| Receiver | 5ml with 0.05 ml graduation |
| Condenser | 400mm±5mm |
| Ambient Temperature | -10°C ~ +35°C |
| Relative Humidity | ≤85% |
| Dimensions (without test vessels) | 425mm×330mm×150mm |
| Dimensions (with test vessels) | 425mm×330mm×1180mm |
Standard Accessories
| Item | Unit | Quantity | Remarks |
|---|---|---|---|
| Drying tube | Piece | 2 | |
| Silica gel stopper (3#) | Piece | 2 | |
| Condensation tube | Piece | 2 | |
| Receiver | Piece | 2 | |
| Round bottom flask | Piece | 2 | |
| Standing rod | Pair | 2 | Upper and lower standing rod each 2 |
| Condenser pipe holder | Pair | 2 | |
| 6 A fuse (Φ5×20) | Piece | 2 | |
| Tip shape small tools | Piece | 1 | |
| Scraper | Piece | 1 | |
| Sprayer | Piece | 1 |
