MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working |
| Payment Method: | ,L/C,T/T |
| Supply Capacity: | 500 sets/month |
Micro Spectrophotometer 4500 ng/μl
,Micro Spectrophotometer 2 ng/μl
,Full Spectrum Spectrophotometer

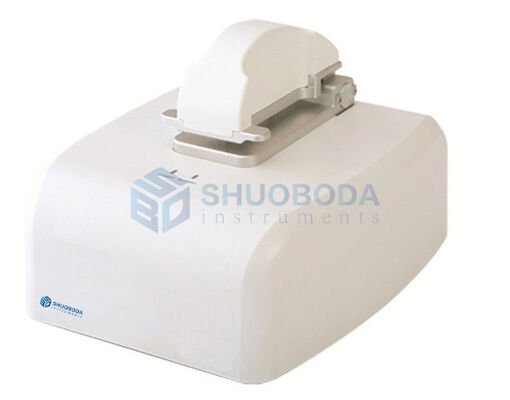

MSP-100 Micro-Spectrophotometer
Product introduction:
MSP-100 is a perfect full-spectrum, UV-Vis spectrophotometer, used to quantify and assess concentration of DNA, RNA, protein and more.
MSP-100 utilizes CCD detector, a Xenon light source for long lifetime lamp together with simple software. Simple pipette 0.5~2 μl sample onto the pedestal, laying down the sampling arm, it can complete the measurement within 5 seconds.
Features
User-friendly software, easy to use
Graphical software operation, the interface is more intuitive, and the results can be directly exported, which is convenient for data saving, viewing and output
Micro-volumes measuring
Only require 0.5~2 μl sample to accurate determinate of nucleic acids, proteins
Fast and easy measurements
Turn on and instantly measure without lamp warm up time; Easy measurement within 5 sec
Long life's Xenon flash lamp
Xenon flash lamp, 10 flashes, up to 10 years, no dilutions and expensive consumables
High detection concentration
The highest concentration of the measurable sample is 4500 ng/μl (dsDNA as an example), and the sample basically does not need to be diluted
Ease of use
Spot the sample directly on the base without dilution or cuvette, the measurable sample concentration is 50 times that of a conventional UV-Vis spectrophotometer, and the result is directly output as the sample concentration
MSP-100 Unique Advantages:
1. Turn on and instantly measure without lamp warm up time;
Full scan capability from 200-800 nm within 5 sec
2. Detects Nucleic Acids up to 4500 ng/ul (dsDNA)
3. 3864-Element linear silicon CCD array
4. Need to connect computer
5. Software compatibility: WinXP, Win7, Win8
Technical Specifications
|
Model |
MSP-100 |
|
Wavelength range |
200-800 nm |
|
Minimum sample size |
0.5-2.0 μl |
|
Path length |
0.2 mm 1.0 mm |
|
Light source |
Xenon flash lamp |
|
Detector type |
2048-Linear CCD array |
|
Wavelength accuracy |
1 nm |
|
Spectral resolution |
≤3 nm |
|
Absorbance precision |
0.003Abs |
|
Absorbance accuracy |
1%(7.332Abs at 260 nm) |
|
Absorbance range |
0.04 - 90 A |
|
Detects nucleic acid up to |
2~4500 ng/μl (dsDNA) |
|
Measurement time |
<5 S |
|
Data output |
Connect PC |
|
Sample pedestal material |
Aluminum alloy and Quartz fiber |
|
Operating voltage |
DC 24 V 2 A |
|
Operating power |
20 W |
|
Standby power |
5 W |
|
Dimension (W×D×H) mm |
200×250×166 |
|
Weight |
2.6 kg |
|
Software compatibility |
WinXP, Win7, Win8 |
