MSP-500 Advanced Micro UV VIS Spectrophotometer 2-15000ng/μl
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
UV VIS Spectrophotometer 15000ng/μl
,UV VIS Spectrophotometer 2ng/μl

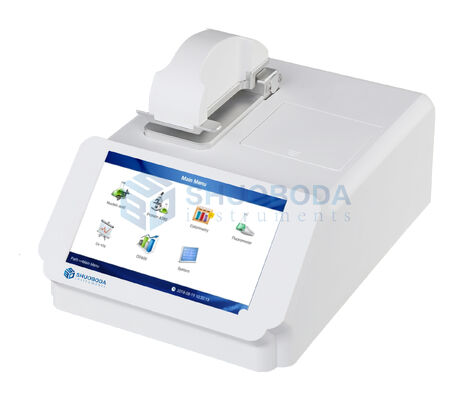

MSP-500 advanced micro UV VIS spectrophotometer, 2-15000ng/μl
Product introduction:
MSP-500 is an advanced model of micro UV VIS spectrophotometer based on MSP-300, with full range of wavelength (200-800 nm). It is with an added new function of bacterium cell concentration measurement (OD600) in a cuvette. The MSP-500 only requires 0.5-2 μl sample to measure nucleic acids, proteins as quickly as MSP-300. MSP-500 come with a 7 inch touch screen and integrated Android operating system, with no computer required. It is an ideal equipment for a biology laboratory to make life science research more efficient.
Features
The patented lifting motor structure makes the liquid column stretch gentler, preventing the liquid column from breaking due to structural problems
To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
Android system, 7-inch capacitive touch screen, intuitive APP software, simple and easy to use
With a 2048-Element linear CCD array detector, the detection and display can be completed in 6S Long-life pulsed xenon light source
The result can be printed by a built-in printer or exported via USB for data analysis and storage
Technical Specifications
|
Model |
MSP-500 |
|
Wavelength range |
200-800nm |
|
Minimum sample size |
0.5-2.0μl |
|
Path length |
0.05mm, 0.2mm (high concentration measurement), 1.0mm (normal concentration measurement) |
|
Light source |
Xenon flash lamp |
|
Detector type |
UV-sillion photocell |
|
Light source |
Xenon flash lamp |
|
Detector |
2048-unit linear CCD array |
|
Wavelength accuracy |
1nm |
|
Wavelength resolution |
≤3nm |
|
Absorbance accuracy |
0.003Abs |
|
Absorbance accuracy |
1% (7.332Abs at 260nm) |
|
Absorbance range (equivalent to 10mm) |
0.04 - 300A |
|
Nucleic acid detection range |
2-15000ng/μl (dsDNA) |
|
Detection time |
<6S |
|
Data output method |
USB |
|
Sample base material |
Quartz optical fiber and high-hardness aluminum |
|
Power adapter |
DC 24V 2A |
|
Power consumption |
25W |
|
Standby power consumption |
5W |
|
Dimensions (W×D×H) mm |
208×320×186 |
|
Weight |
3.6kg |
|
Software operating platform |
Android system |
|
Cuvette Mode (OD600) Light Source |
LED |
|
Wavelength range |
600±8nm |
|
Absorbance range |
0-4A |
|
Fluorometer mode |
|
|
Sensitivity: dsDNA |
0.5pg/μl |
|
Linearity |
R²≥0.995 |
|
Stability |
≤1.5% |
