MSP-300 Nano UV Vis Micro Spectrophotometer 2 - 4500ng/uL
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Nano Micro Spectrophotometer
,UV Vis Micro Spectrophotometer
,UV Vis Spectrophotometer 4500ng/uL

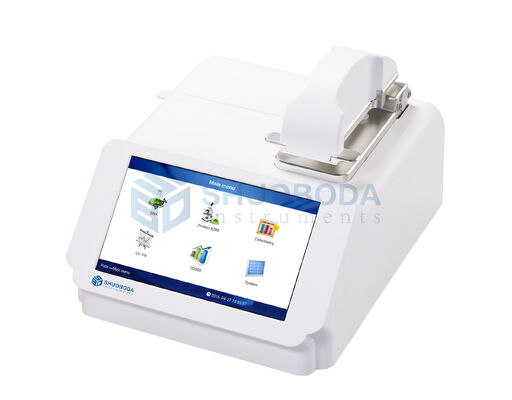

MSP-300 Nano UV-Vis Micro-spectrophotometer, 2-4500ng/uL
Product introduction:
MSP-300 is a perfect full-spectrum, UV-Vis micro-spectrophotometer based on MSP-100 with full range of wavelength (200-800nm). Not only can it quickly and accurately detect nucleic acids, proteins and cell solutions with only 2 μl of sample like MSP-100, but it is also equipped with a cuvette mode to detect the concentration of bacteria and other culture solutions, and then determine the growth of bacteria. MSP-300 is added a new function of bacterium cell concentration test (OD600). MSP-300 uses 7-inch touch screen and is integrated with Android system, which do not need to connect to a computer. It can be efficiently and conveniently applied to various fields of life science, and has become a routine configuration instrument in many laboratories.
Features
Android system, 7-inch capacitive touch screen, intuitive APP software, simple and easy to use
To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
With a 2048-Element linear CCD array detector, the detection and display can be completed in 5s
Equipped with HD touch screen, no need to connect PC
When the MSP-300 is idly left more than 5mins. it will switch of automatically, Then, the user can awake the machine by touching the screen
The data can be printed with built-in printer, and can output via USB for data analysis and storage
Turn on and instantly measure without lamp warm up time: full scan capability from 200-800nm within 5 sec
Technical Specifications
|
Model |
MSP-300 |
|
Wavelength range |
200-800 nm |
|
Minimum sample size |
0.5-2.0 μl |
|
Path length |
0.2 mm 1.0 mm |
|
Light source |
Xenon flash lamp |
|
Detector type |
2048-Linear CCD array |
|
Wavelength accuracy |
1 nm |
|
Spectral resolution |
≤3 nm (FWHM at Hg546 nm) |
|
Absorbance precision |
0.003Abs |
|
Absorbance accuracy |
1%(7.332Abs at 260 nm) |
|
Absorbance range |
0.04 - 90 A |
|
Detects nucleic acid up to |
2~4500 ng/μl (dsDNA) |
|
Measurement time |
<5 S |
|
Data output |
USB |
|
Sample pedestal material |
Aluminum alloy and Quartz fiber |
|
Operating voltage |
DC 24 V 2 A |
|
Operating power |
25 W |
|
Cuvette mode (OD600) |
LED (Light Emitting Diode) |
|
Standby power |
5 W |
|
Dimension (W×D×H) mm |
210×268×181 |
|
Weight |
2.8 kg |
|
Software compatibility |
Android system |
|
Light source |
LED |
|
Wavelength range |
600±8 nm |
|
Absorbance range |
0-4 A |
