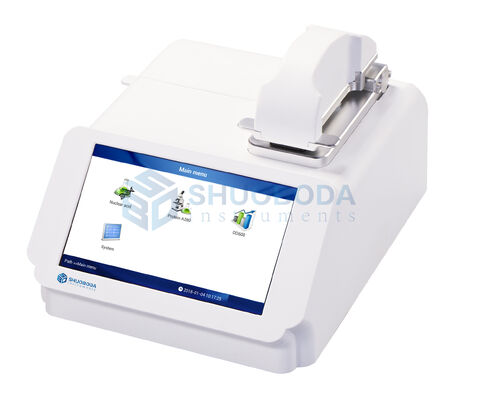

MSP-400A ultra-micro nucleic acid analyzer, 260 nm, 800 nm, 10-2500 ng/μl
Product introduction:
MSP-400A ultra-micro nucleic acid analyzer is an instrument used to detect the concentration and purity of DNA and RNA. The sample size required for each measurement is only 1 to 2 μl. User can directly add the sample point to the template without colorizing cup or capillary accessories. After the measurement, you can choose to wipe the sample directly or use a pipettor to recover the sample. All steps are simple and fast.
Features
MSP-400A is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelengths: 260 nm, 280 nm and 365 nm) for the measurement of nucleic acids and proteins
Android system operation, 7-inch touch screen no computer, APP software, simple interface, easy to use
LED light source long-life components
To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
Measures nucleic acid concentration at 260 nm and purity using the ratio 260/280
Measure purified protein concentration at 280 nm
The data can be printed with built-in printer, the data can output via SD-RAM card and USB memory
Technical Specifications
|
Model |
MSP-400A |
|
Wavelength range |
260 nm, 800 nm |
|
Minimum sample size |
1-2.0 μl |
|
Path length |
0.5 mm |
|
Light source |
LED |
|
Detector type |
UV-sillion photocell |
|
Spectral resolution |
≤8 nm |
|
Absorbance precision |
0.005Abs |
|
Absorbance accuracy |
2%(7.332Abs at 260 nm) |
|
Absorbance range |
0.2 - 50 A |
|
Detects nucleic acid up to |
10-2500 ng/μl(dsDNA) |
|
Measurement time |
<6 S |
|
Data output |
USB |
|
Sample pedestal material |
Quartz optical fiber and high-hardness aluminum |
|
Operating voltage |
DC 24 V 2 A |
|
Operating power |
25 W |
|
Standby power |
5 W |
|
Dimension (W×D×H) mm |
208×280×186 |
|
Weight |
2.0kg |
|
Cuvette mode (OD600) Light source |
LED (Light Emitting Diode) |
|
Software compatibility |
Android system |
|
Light source |
LED |
|
Wavelength range |
600±8 nm |
|
Absorbance range |
0-4 A |
