Ultra Micro Volume UV Spectrophotometer 185nm - 910nm 2-38880ng/ul
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Ultra Micro Volume UV Spectrophotometer
,UV Spectrophotometer 185nm
,UV Spectrophotometer 910nm

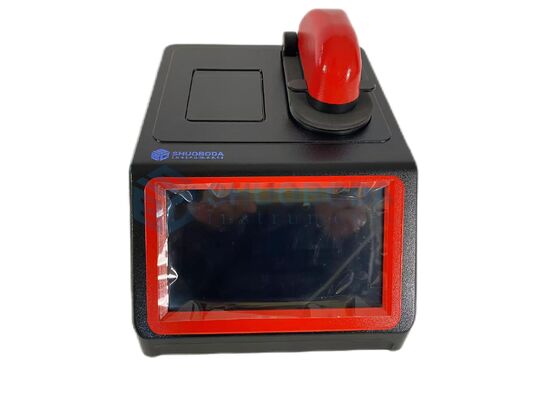

MSP-800+ ultra-micro-volume UV spectrophotometer
Product introduction:
MSP-800+ ultra-trace nucleic acid and protein analyzer (ultra-trace spectrophotometer) is a highly reproducible spectrophotometer that adopts dual detection modes of base and cuvette loading, and is suitable for sample detection in a wider concentration range. , easy to operate, mainly used to detect nucleic acid concentration and protein purity.
Features:
7-inch capacitive touch screen, optimized design APP software
Only a trace sample of 0.5~2ul can be used for purity and concentration measurements, and the sample can be recovered.
A new OD600 optical path detection system and a new cuvette mode are added to facilitate the detection of the concentration of culture fluids such as bacteria and microorganisms.
Extremely fast detection speed, each sample can be tested within 5 seconds.
The built-in printer prints reports directly.
6800mmA lithium battery (optional).
It can be output through USB flash memory and SD-RAM card to facilitate data analysis and storage.
Fluorescence detection function (optional), compatible with common fluorescence quantitative reagents.
Technical Specifications
|
Model |
MSP-800+ |
|
Software operating platform: |
7-inch capacitive touch screen, Android system |
|
Wavelength range: |
185-910nm |
|
Cuvette mode (OD600): |
600±8nm |
|
Sample volume requirements: |
0.5-2.0ul |
|
Optical path: |
1mm, 0.2mm, 0.05mm, 0.02mm automatic switching |
|
light source: |
Xenon flash lamp (life span up to 10 years) |
|
Detector: |
3648 pixel linear CCD array |
|
Wavelength accuracy: |
1nm |
|
Wavelength resolution |
≤3nm(FWHM at Hg 546nm) |
|
Absorbance Accuracy: |
0.003Abs |
|
Absorbance Accuracy: |
1% (7.332 Abs at 260nm) |
|
Absorbance range (equivalent to 10mm): |
0.02-300A; |
|
Cuvette mode (OD600 measurement): |
0~4A |
|
testing time: |
≤5S |
|
Nucleic acid detection range: |
2-38880ng/ul(dsDNA) |
|
Protein detection range: |
0-440mg/ml (BSA) |
|
Data output method: |
USB, SD-RAM card |
|
Sample base material: |
Quartz fiber and high hard aluminum |
|
Print: |
Built-in thermal printer |
|
lithium battery |
6800mmA optional |
|
Fluorescence detection: |
Excitation wavelength 460nm, emission wavelength 525nm |
|
size (mm) |
270x210x196 |
