BD-D5453-021Z fluorescence sulfur content tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D5453-021Z
Measurement Range:
0.1ppm～10000ppm
Lower Detection Limit:
2 Ng
Measurable Sample States:
Liquid, Gas (customer Chooses Liquid Sampler).
Temperature Control Range:
RT ~ 1300℃
Temperature Control Accuracy:
±2℃
Power Supply:
AC220V±10%
Highlight:
Sulfur content tester
,BD-D5453-021Z sulfur content tester
,Fluorescence Sulfur Content Tester
Product Description

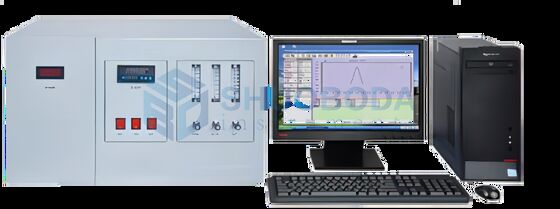

BD-D5453-021Z Fluorescence Sulfur Content Tester
Product Overview
The BD-D5453-021Z fluorescence sulfur content tester utilizes pulsed ultraviolet fluorescence analysis method for precise sulfur content measurement in petroleum products, meeting national V and higher standard oil sulfur content detection requirements.
Applicable Standards
ASTM D5453, D6667, D7183, GB/T17930, GB/T11060, SH/T 0689, and related international standards.
Performance Characteristics
- Advanced pulsed ultraviolet fluorescence analysis method with lower detection limit and higher accuracy
- Windows Chinese operating platform with intuitive human-machine dialogue interface
- Computer-controlled analysis process with data processing and real-time status display
- Software stores 5,000 sample data with historical data query and graphical playback capabilities
- International circuit design with imported components for reduced noise and enhanced sensitivity
- Core components including membrane dryers, filters, xenon lamps, and photomultiplier tubes imported from US, Japan, and Europe
- Premium imported heating furnace wire with extended service life and automatic over-temperature protection
- Advanced double anti-leakage reaction chamber design for improved sensitivity and repeatability
- Fast analysis speed (3-4 minutes per sample) with excellent precision and stability
- Single-point calibration with adjustable high pressure, eliminating need for standard curve recalibration
- Calibrated with US and Japanese standard samples for superior measurement accuracy
- Open LIMS database management system for efficient data retrieval and management
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 0.1 ppm - 10,000 ppm |
| Lower Detection Limit | 2 ng |
| Sample States | Liquid, Gas (with optional liquid sampler) |
| Temperature Control Range | Room Temperature - 1300°C |
| Temperature Control Accuracy | ±2°C |
| Repeatability Error | 0.1-1.0 ppm: <±0.1 ppm 1-10 ppm: <10% >10 ppm: <5% |
| Baseline Drift | <2 μV/72h |
| Standard Reagents | Sulfur standard 100 mg/L, 300 mg/L, 500 mg/L isooctane |
| Gas Requirements | Argon: ≥99.995% Oxygen: ≥99.99% |
| Host Dimensions | 420 × 400 × 530 mm |
| Power Supply | AC220V ±10% |
| Power Consumption | 1500W |
| Temperature Controller | 500 × 400 × 530 mm |
| Cooling Method | Air Cooling |
Standard Configuration
Complete system includes host computer (data acquisition and control system), cracking furnace, automatic sampler, computer with operating software, and printer.
