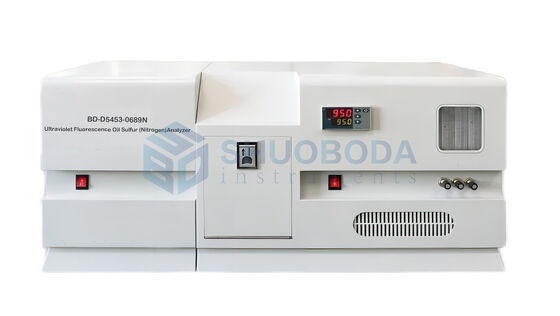

BD-D5453-0689N Ultraviolet Fluorescence Sulfur (Nitrogen)-in-Oil Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Ultraviolet Fluorescence Nitrogen Analyzer
,BD-D5453-0689N Analyzer
This instrument determines total sulfur content using ultraviolet fluorescence methodology. It enhances anti-interference capabilities and eliminates the complex operation of titration pools and instability factors associated with coulometry, significantly improving instrument sensitivity. Key system components utilize imported parts to prevent detector light leakage and steam leakage, ensuring reliable performance.
SH/T 0689－2000, ASTM D 5453 -2006, EN ISO 20846:2004, GB 17930-2011, GB 19147-2009, ISO 20846-2011, BS EN 15486-2007
Features Windows-based (7, XP, Me, 98) English user interface for convenient and rapid operation. Operators simply click the mouse to complete all parameter settings. Data collection, processing, storage, and printing are fully computer-controlled.
- Standard Configuration: Printer + Computer + BD-D5453-0689N + Liquid Injector
- Optional Parts: Solid sample injector, gas sample injector
- Sample Types: Solid, gas and liquid
- Determination Method: Ultraviolet fluorescence method (S)
- Sample Injection Quantity: Solid: 1-20mg; Liquid: 5-20μL; Gas: 1-5mL
- Measuring Range: 0.1 ~ 50000mg/L (High concentration requires dilution; Low concentration gas sample up to 0.1ppm)
- Temperature Range: Ambient to 1150°C
- Temperature Control Precision: ±1°C
- Air Supply Requirements: High purity argon: above 99.9%; High purity oxygen: above 99.9%
- Power Supply: AC220V±22V, 50Hz±0.5Hz, 1500W
- Dimensions: Host: 305(W)×460(D)×440(H)mm; Temp controller: 550(W)×460(D)×440(H)mm
- Net Weight: Host: 20kg, Temp controller: 40kg
| Concentration Values (ppm) | Injection Quantity (µL) | RSD (%) |
|---|---|---|
| 0.2 | 20 | 50 |
| 5 | 10 | 10 |
| 50 | 10 | 5 |
| 100 | 10 | 3 |
| 5000 | 10 | 3 |
| No. | Item | Unit | Qty | Remarks |
|---|---|---|---|---|
| 1 | Nitrogen analyzer host | Set | 1 | |
| 2 | Sulfur analyzer host | Set | 1 | |
| 3 | Filter | Piece | 1 | |
| 4 | Pyrolyzer | Set | 1 | |
| 5 | Silicone rubber pad | Piece | 10 | |
| 6 | Silicone rubber tube | Centimeter | 20 | |
| 7 | Rubber tube | Meter | 10 | |
| 8 | Thermocouple | Piece | 1 | |
| 9 | Power line | Piece | 3 | |
| 10 | Communication line | Piece | 1 | |
| 11 | Quartz tube * | Piece | 1 | Comes with the installer |
| 12 | Injection needle | Piece | 4 | |
| 13 | Membrane type dryer | Piece | 1 | |
| 14 | Ozone generator | Piece | 1 | |
| 15 | Photomultiplier | Piece | 2 | |
| 16 | Ozone rid device | Piece | 1 | |
| 17 | Ultraviolet light | Piece | 1 | |
| 18 | Sulfur standard sample | Piece | 30 | |
| 19 | Nitrogen standard sample | Piece | 30 | |
| 20 | Special clamp for quartz cracking tube | Piece | 2 | |
| 21 | PC | Set | 1 | |
| 22 | Laser printer | Set | 1 | |
| 23 | Nitrogen reaction chamber | Piece | 1 | |
| 24 | Sulfur reaction chamber | Piece | 1 |
