BD-D1551-022 Dark petroleum sulfur content analyzer (Quartz tube furnace method)
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1551-022
Working Power Supply:
AC220V±10% 50Hz Standard 10A Plug
Heating Power:
1.8KW
Temperature Control Range:
RT~ 1000 ° C
Burning Time:
Arbitrarily Set From 25 To 65 Minutes
Air Flow:
70 ~ 700ml / Min
Dimensions:
700 × 400 × 500 (mm)
Highlight:
Quartz tube furnace sulfur content analyzer
,BD-D1551-022 sulfur content analyzer
,Dark petroleum sulfur content analyzer
Product Description

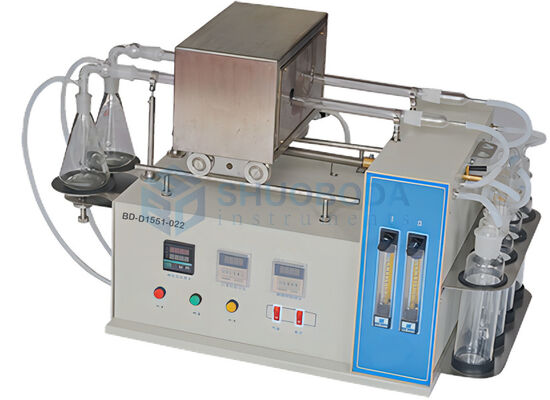

BD-D1551-022 Dark Petroleum Sulfur Content Analyzer (Quartz Tube Furnace Method)
Product Overview
This advanced instrument is specifically designed for the precise determination of sulfur content in dark petroleum products, utilizing the quartz tube furnace method for accurate and reliable results.
Key Features
- Advanced PID self-tuning temperature control system with exceptional accuracy: 925±5°C
- Modular programming capability allowing arbitrary setting of resistance furnace trolley path/residence time
- Negative pressure gas path system with grinding port connections for easy loading/unloading and leak-free operation
- Dual quartz tube configuration running simultaneously with shared air purification system and flow control
- Durable furnace body constructed from imported stainless steel sand plate shell, offering heat resistance, corrosion resistance, and aesthetic appeal
Applicable Standards
GB/T 387 | ASTM D1551
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Power Supply | AC220V±10% 50Hz standard 10A plug |
| Heating Power | 1.8KW |
| Temperature Control Range | Room temperature to 1000°C (arbitrary setting) |
| Burning Time | 25 to 65 minutes (arbitrarily set) |
| Temperature Control Accuracy | 925±5°C |
| Air Flow | 70 ~ 700ml/min |
| Dimensions | 700 × 400 × 500 (mm) |
Standard Accessories
- Quartz tube: 2 groups
- Gas wash bottle: 4 pcs
- Receiver: 2 pcs
- U-tube: 1 pc
- Small hook, porcelain boat: 1 each
- Silicone tube: 3 meters
- Fuse: 2 pcs
- Power cord: 1 pc
- Instructions: 1 copy
- Certificate of conformity: 1 copy
