BD-D4294-022Z X-ray fluorescence sulfur meter
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D4294-022Z
Lower Detection Limit:
10ppm Level
Relative Humidity:
≤85% (30℃),
Power Supply:
220V±20V, 50Hz.
Overall Power Consumption:
<150W.
Size:
405mm×285mm×165mm
Weight:
9.5Kg.
Highlight:
X-Ray Fluorescence Sulfur Meter
,X-ray fluorescence sulfur meter
,D4294-022Z X-ray Sulfur Meter
Product Description

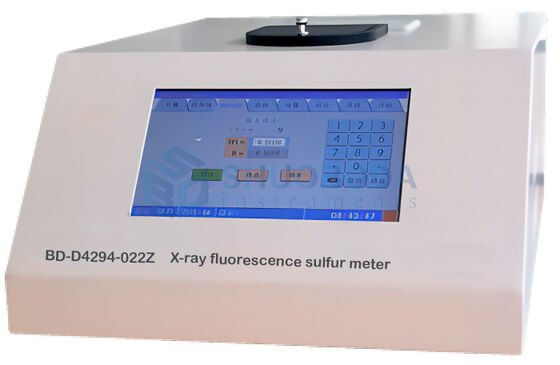

BD-D4294-022Z X-ray Fluorescence Sulfur Meter
Product Overview
The BD-D4294-022Z X-ray fluorescence sulfur meter utilizes energy dispersive X-ray fluorescence spectrometry for precise sulfur content measurement in various hydrocarbon compounds.
Applicable Standards
GB/T 17040, ASTM D4294
Scope of Application
This instrument measures sulfur content in hydrocarbons including:
- Diesel, naphtha, kerosene, residual oil
- Lubricating base oil, hydraulic oil, jet fuel
- Crude oil, motor gasoline and other distillates
- Other products such as M85 and M100
Performance Characteristics
- Fully automatic operation with specialized optical path for detection limits as low as 10 ppm
- Advanced color touch screen with intuitive, humanized design
- Multi-channel pulse amplitude analyzer with CPLD, FPGA, and DSP technologies
- Rapid detection capability with results in tens of seconds and automatic C/H ratio correction
- Background interference shielding for hydrogenated gasoline and diesel
- Multiple calculation methods to eliminate measurement errors
- Automatic curve selection during testing
- Automatic spectrum stabilization function for long-term accuracy
- Annual calibration requirement of only 1-2 times
- Automatic calibration function for enhanced stability
- One-click experimental curve error calibration
- Powerful storage capacity for 1,000 measurement results
- Internal detection device placement for extended service life
- Comprehensive radiation protection for laboratory safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | Adjustable via calibrated working curve |
| Measuring Range | S % max ~ S % min ≤ 99.9999% (e.g., petroleum sulfur content: 0.005% ~ 5%) |
| Error & Accuracy | Complies with GB/T 17040-2008, GB/T17606-2009, and ASTM4294 |
| Measurement Time | 30, 60, 100, 150, 300 seconds (recommended: 100 seconds) |
| Lower Detection Limit | 10ppm level |
| Operating Temperature | 5℃～40℃ |
| Relative Humidity | ≤85% (30℃) |
| Power Supply | 220V±20V, 50Hz |
| Power Consumption | <150W |
| Dimensions | 405mm×285mm×165mm |
| Weight | 9.5Kg |
