BD-D445-265-3 Auto Capillary Viscometer Washer, Viscosity Meter Washer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D445-265-3
Power supply:
220±10V, 50 Hz;
Total power consumption:
Not More Than 700 W;
Temperature controlling range of water bath:
RT~80°C;
Ambient temperature:
Room Temperature~35°C;
Relative humidity:
≤85%;
Size:
320mm×300mm×500mm;
Highlight:
Auto capillary viscometer washer
,Viscosity meter cleaning device
,Kinematic viscometer washer
Product Description

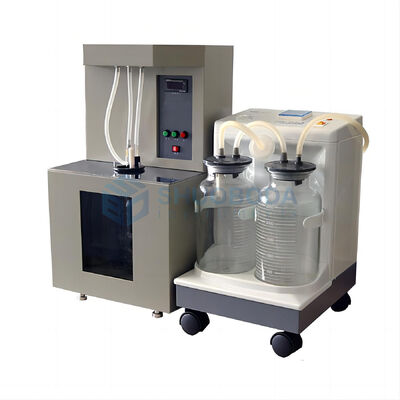

BD-D445-265-3 Auto Capillary Viscometer Washer
The BD-D445-265-3 Auto Capillary Viscometer Washer is specifically designed for cleaning capillary viscometers used in petroleum product testing. This automated system efficiently washes various types of glass capillary viscometers including Pinkevitch, Ubbelohde, Cannon-Fenske routine, and Cannon-Fenske opaque models. Particularly effective for cleaning viscometers used with heavy, high-viscosity oils, this unit saves time and reduces solvent consumption.
Utilizing micro-controller control technology with programmable automation, this washer offers convenient and efficient operation. It is widely applicable in petroleum production facilities, research institutions, universities, and any organization utilizing capillary viscometers.
Key Features
- Micro-controller controlled automated washing and drying cycles with programmable software
- Broad compatibility with three-ended glass capillary viscometers including Pinkevitch, Ubbelohde, Fenske, and Reverse flow types
- Simple operation with excellent performance for petroleum testing applications in petrochemical, power generation, railway, quality inspection, military, and research sectors
Technical Specifications
| Power Supply | 220±10V, 50 Hz |
| Total Power Consumption | Not more than 700 W |
| Water Bath Temperature Range | Room temperature ~ 80°C |
| Ambient Temperature | Room temperature ~ 35°C |
| Relative Humidity | ≤85% |
| Dimensions | 320mm × 300mm × 500mm |
| Weight | 10 kg (excluding pumping device) |
Standard Accessories
| Item | Unit | Quantity | Remarks |
|---|---|---|---|
| Electric aspirator | Set | 1 | Refer to aspirator manual for accessories |
| Capillary viscometer stand | Piece | 1 | |
| Reducer union | Piece | 2 | One pre-installed on washing pipe |
| 6A fuse (Ф5 × 20) | Piece | 2 | |
| Power supply wire (220V, 6A) | Root | 1 | |
| Cleaning agent pipe | Root | 1 | Length 0.8 meter, Outside diameter Ф4.0, Inside diameter Ф2.5 |
