BD-T265-A13 automatic low-temperature kinematic viscometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-T265-A13
Sensor:
Pt1000
Temperature Control Range:
10℃～150℃
Resolution:
0.001℃
Temperature Control Accuracy:
±0.01℃
Timing Accuracy:
±0.1s,
Resolution:
0.01s
Highlight:
automatic kinematic viscometer with warranty
,low-temperature kinematic viscometer
,BD-T265-A13 kinematic viscometer
Product Description

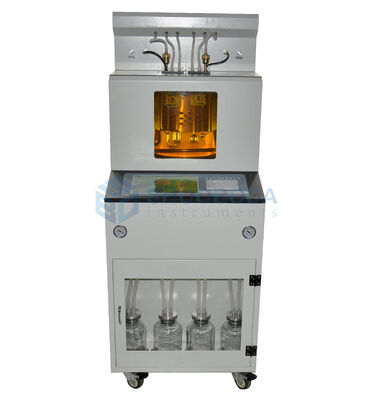

BD-T265-A13 Automatic Low-Temperature Kinematic Viscometer
Product Overview
The BD-T265-A13 automatic low-temperature kinematic viscometer is designed for testing the kinematic viscosity of oils, as well as the viscosity and intrinsic viscosity of polymer dilute solutions. Operators simply pour 15-20 mL of sample into the test tube, and the instrument automatically prints the results. Widely used in pharmacopoeia, petroleum, chemical, research, metrology, and industrial sectors.
Compliance Standards
Compatible with GB/T 265 and GB/T 1632 standards.
Key Features
- Advanced temperature sensor and control algorithm with 0.001°C display resolution
- Storage capacity for 100 test records
- Built-in viscometer calibration program (JJG155) and viscosity index calculator
- 10.2-inch color touch LCD with intuitive Chinese menu and GUI interface
- Comprehensive operational guidance with prompt sounds for ease of use
Technical Specifications
| Installation Method | Floor-standing |
| Sensor Type | Pt1000 |
| Temperature Control Range | 10℃ to 150℃ |
| Temperature Resolution | 0.001℃ |
| Temperature Control Accuracy | ±0.01℃ |
| Timing Accuracy | ±0.1s (0.01s resolution) |
| Sample Capacity | 2 test units |
| Display Interface | 10.2-inch true color GUI touch screen |
| Operating Temperature | 5℃ to 45℃ |
| Operating Humidity | ≤85% |
| Power Supply | AC220V ±10%, 50Hz±1Hz |
| Power Consumption | ≤2100W |
| Dimensions | 550mm × 600mm × 1350mm |
| Weight | 125kg |
