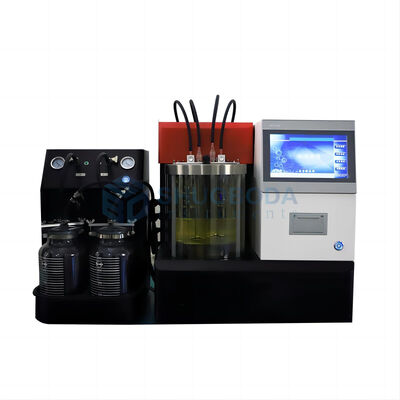

BD-T265-A11automatic kinematic viscometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-T265-A11
Kinematic Viscosity Measurement Range:
0.5-5000cSt (mm2/s)
Temperature Control Range:
RT ~ 100℃
Temperature Control Accuracy:
±0.1℃
Resolution:
0.01℃
Test Hole:
2 Holes
Sample Volume:
10mL
Highlight:
automatic kinematic viscometer with warranty
,BD-T265 kinematic viscometer
,A11 automatic viscometer
Product Description
BD-T265-A11 Automatic Kinematic Viscometer
The BD-T265-A11 automatic kinematic viscometer measures the kinematic viscosity of transparent or translucent liquids with precision, including crude oil, light and heavy fuel oils, lubricating oils, additives, and waste oils. This fully automated instrument performs constant temperature control, viscosity testing, cleaning, and drying functions without operator intervention. After initial setup, personnel can leave the site while the instrument automatically completes all testing tasks.
Compliance Standards
Compatible with GB/T265 and ASTM D445 standards
Application Areas
- Electric power, petroleum, chemical, environmental protection, and scientific research sectors
- Petroleum products requiring measurement of kinematic viscosity characteristics
Instrument Features
- Fully automated processes including constant temperature, sample suction, timing, calculation, printing, cleaning, and drying
- High-speed CPU and imported temperature controller ensure high reliability with automatic storage for 1000 test data points
- Imported 10-inch true color touch screen with full Chinese operation interface and intuitive display
- Original imported PT100 sensor provides fast, accurate temperature measurement with capability for two asynchronous sample measurements
Technical Parameters
| Kinematic Viscosity Measurement Range | 0.5-5000 cSt (mm²/s) |
| Temperature Control Range | Room temperature to 100℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Resolution | 0.01℃ |
| Test Capacity | 2 samples |
| Sample Volume | 10 mL |
| Display | Color LCD display |
| Power Consumption | 1500 W |
| Power Supply | AC220V±10% 50Hz |
| Operating Temperature | 5-40℃ |
| Relative Humidity | ≤85% |
| Dimensions (Host) | 370mm × 300mm × 650mm |
| Weight | Approximately 28.4 kg |
