BD-D445-005J Semi-Automatic kinematic Viscometer, Viscosity Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D445-005J
Power Supply:
AC220V ± 10%
Heating Power:
2.0KW
Temperature Control Range:
RT~100℃ (arbitrary Setting)(refrigeration 0~100C Is Optional)
Temperature Control Accuracy:
±0.1 °C
Timing:
4 Way
Dimensions:
Main Unit: 740 × 380 × 350 (mm); Input Refrigeration Unit: 320 × 3400 × 400 (mm)
Highlight:
semi-automatic kinematic viscometer
,viscosity tester with warranty
,kinematic viscometer viscosity measurement
Product Description

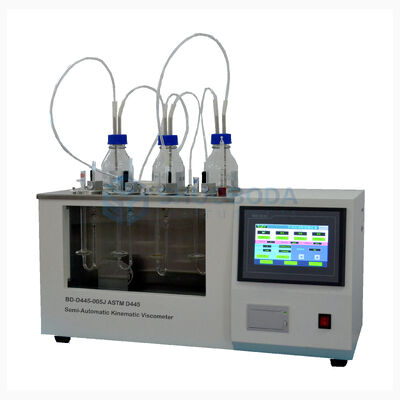

BD-D445-005J Semi-Automatic Kinematic Viscometer
Product Overview
The BD-D445-005J Semi-Automatic Kinematic Viscometer is a precision viscosity testing instrument designed for laboratory applications, featuring advanced temperature control and automated measurement capabilities.
Compliance Standards
This instrument meets GB/T265 and ASTM D445 standards for viscosity testing, ensuring reliable and accurate measurements for various industrial applications.
Key Features
- National technology patent holder (Patent No: Z201621447588.6)
- PLC programmable controller system with large-screen LCD touch interface
- Rapid temperature rise function with precise temperature control and low thermal inertia
- Square cylinder design with four testing positions and stainless steel inner tank
- Front observation window with LED illumination for clear visibility
- Built-in stirring system ensures uniform bath temperature with minimal liquid level fluctuation
- Patented capillary viscometer clamp cover for easy loading, unloading, and stable operation
- Simultaneous measurement of four capillary viscometers with automatic time recording and kinematic viscosity calculation
- Integrated capillary automatic cleaning system
- Optional refrigeration system with imported compressor for 20°C testing environments
Technical Specifications
| Power Supply | AC220V ± 10% |
| Heating Power | 2.0KW |
| Temperature Control Range | RT~100°C (arbitrary setting) Refrigeration option: 0~100°C |
| Temperature Control Accuracy | ±0.1°C |
| Timing Channels | 4-way simultaneous measurement |
| Dimensions (Main Unit) | 740 × 380 × 350 (mm) |
| Dimensions (Refrigeration Unit) | 320 × 340 × 400 (mm) |
Refrigeration Option
For testing at 20°C, the instrument can be equipped with an imported compressor refrigeration system to maintain precise temperature control unaffected by external environmental conditions.
