BD-T265-A10 kinematic viscometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-T265-A10
Measuring Range:
0-10000mm2/s
Temperature Control Setting:
Room Temperature ~99.9℃
Quantity Of Capillary Tubes:
4
Constant Temperature Accuracy:
±0.1℃
Sample Volume:
10ml
Heater Power:
1000W
Highlight:
BD-T265-A10 kinematic viscometer
,kinematic viscometer with warranty
,BD-T265-A10 viscosity measurement device
Product Description

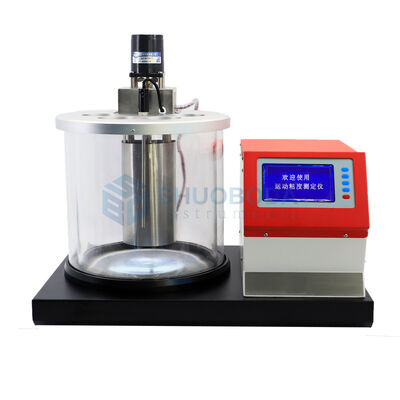

BD-T265-A10 Kinematic Viscometer
The BD-T265-A10 kinematic viscometer is designed for measuring the kinematic viscosity of liquid petroleum products. Kinematic viscosity quantifies a liquid's internal friction when flowing under gravity, calculated as the ratio of dynamic viscosity to density at the same temperature. This measurement serves as a critical physical and chemical parameter for identifying oil grade and quality. Selecting lubricants with appropriate viscosity ensures reliable operation and longevity of mechanical equipment.
Compatible Standard
GB/T265
Application Areas
- Electric power, petroleum, chemical, environmental protection, and scientific research sectors
- Petroleum products requiring measurement of movement characteristics
Instrument Features
- Comprehensive system with PID temperature control, timer, thermostatic device, and water bath components
- Double-layer small cylindrical constant temperature bath ensuring uniform temperature distribution and excellent temperature control
- Chinese LCD display with intuitive menu interface for parameter input including preset temperature, date, and time
- Advanced SSR actuator providing contactless operation, silent performance, spark-free operation, and vibration resistance for extended instrument lifespan
- Stainless steel construction for heater, guide tube, and bath components ensuring corrosion resistance and durability
- Integrated lighting system with optimal brightness, energy efficiency, and long service life
- Automatic calculation of capillary constant and test time averages with high temperature control precision and accuracy
- Automatic timing of sample movement and kinematic viscosity result calculation
- Standard configuration includes Pinoy viscosity tube with optional Ubbelohde tube, Fennir tube, and counterflow tube
Technical Parameters
| Parameter | Specification |
|---|---|
| Measuring Range | 0-10000mm²/s |
| Temperature Control Setting | Room temperature ~99.9℃ |
| Capillary Tube Quantity | 4 |
| Constant Temperature Accuracy | ±0.1℃ |
| Sample Volume | 10ml |
| Heater Power | 1000W |
| Working Power Supply | AC220V±10% 50Hz |
| Ambient Temperature | 5℃～40℃ |
| Relative Humidity | ≤85% |
| Overall Dimensions | 545mm × 370mm × 500mm |
| Weight | 18.4kg |
