BD-445-265H-2 Automatic Kinematic Viscometer, Viscosity Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-445-265H-2
Temperature Range:
Ambient To 100.0°C
Temperature Control Accuracy:
±0.01°C
Timing Accuracy:
±0.01s
Timing Range:
0.0s~ 999.9 S
Power Supply:
(220±10%)V, 50Hz
Maximum Power Consumption:
1000W
Highlight:
automatic kinematic viscometer
,viscosity tester with warranty
,kinematic viscometer for labs
Product Description

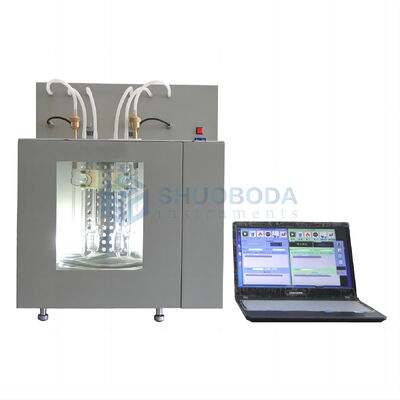

BD-445-265H-2 Automatic Kinematic Viscometer, Viscosity Tester
The BD-D445-265H-2 Automatic Kinematic Viscometer is manufactured in compliance with the national standard GB/T1632 of the People's Republic of China. This instrument is designed for determining kinematic viscosity, viscosity number, and limiting viscosity number of oils and polymers in dilute solution. It finds extensive application in pharmaceuticals, petroleum, chemistry, scientific research, and metrology sectors.
Key Features
- Automatic and multifunctional design for viscosity testing of petroleum products and polymer dilute solutions
- Advanced SCM technology enabling automatic temperature control, sampling, determination, cleaning, drying, and data transmission
- Integrated notebook PC for complete test control, calculations, result analysis, data printing, and storage
- Equipped with Ubbelohde viscometers featuring self-detect functionality - no viscometer changes required during testing
- Optional low-temperature circulatory water bath available for low-temperature viscosity testing
Technical Specifications
- Viscometer Tube: Ubbelohde viscometer (Dilution type) per GB/T1632-93
- Measuring Precision: Compliant with GB/T265, GB/T1632-93 standards
- Temperature Range: Ambient to 100.0°C (low-temperature option available)
- Temperature Control Accuracy: ±0.01°C
- Timing Accuracy: ±0.01s
- Timing Range: 0.0s - 999.9s
- Power Supply: (220±10%)V, 50Hz
- Maximum Power Consumption: 1000W
- Ambient Temperature: 0-40°C
- Relative Humidity: 20-80%
- Barometric Pressure: 96-103kPa
- Dimensions: 570mm * 470mm * 510mm (Circulatory bath, vacuum suction apparatus)
- Net Weight: 22.5kg (Circulatory bath, vacuum suction apparatus and PC not included)
Standard Accessories
| No. | Item | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | PC | Set | 1 | |
| 2 | Vacuum suction device | Set | 2 | |
| 3 | Optical components viscometer (Inner diameter of 0.8 mm, 1.5 mm, 1.0 mm, 1.2 mm each one) | Set | 4 | |
| 4 | Washing liquid pipe | Piece | 2 | |
| 5 | Power supply wire (250V 10A) | Piece | 1 | |
| 6 | Fuse (Φ5 * 20, 10A) | Piece | 2 |
