BD-D445-265H-1 Automatic Viscometer, Viscosity Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D445-265H-1
Temperature Range:
Ambient To 100.0°C
Temperature Control Accuracy:
±0.1°C
Timing Accuracy:
±0.1 S
Timing Range:
0.0s~ 999.9 S
Power Supply:
AC 220V±10%, 50 Hz
Maximum Power Consumption:
2000W
Highlight:
automatic viscometer viscosity tester
,kinematics viscometer with warranty
,BD-D445-265H-1 automatic viscometer
Product Description

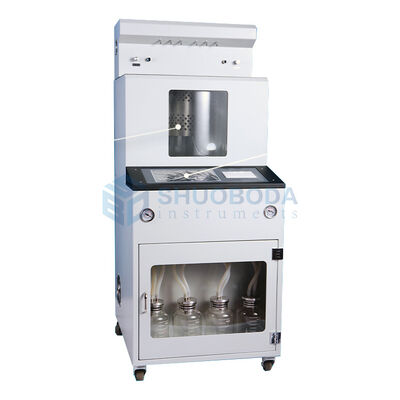

BD-D445-265H-1 Automatic Viscometer, Viscosity Tester
The BD-D445-265H-1 Automatic Viscometer is designed and manufactured in compliance with national standards GB/T 265 (Petroleum products - Determination of kinematic viscosity and calculation of dynamic viscosity) and GB/T1632-93 (Standard Test Method for Viscosity Number and Limiting Viscosity Number of Polymers in Dilute Solution). This instrument is suitable for determining kinematic viscosity, viscosity number, and limiting viscosity number of oils and polymers in dilute solutions, with widespread applications in pharmaceuticals, petroleum, chemistry, scientific research, and metrology.
Main Technical Features
- Micro-computer central control component for prompt operation
- Intelligent control of entire testing procedure with full automation of temperature control, time detection, viscosity calculation, viscometer tube cleaning and drying, and automatic test result printing
- Built-in fault identification and processing capabilities for convenient instrument condition analysis
Main Technical Specifications
- Viscometer tube: Ubbelohde viscometer (Dilution type); compliant with GB/T1632-93
- Measurement precision: Compliant with GB/T265, GB/T1632-93 standards
- Temperature range: Ambient to 100.0°C
- Temperature control accuracy: ±0.1°C
- Timing accuracy: ±0.1 s
- Timing range: 0.0s ~ 999.9 s
- Power supply: AC 220V±10%, 50 Hz
- Maximum power consumption: 2000 W
- Ambient temperature: 0°C ~ 40°C
- Relative humidity: 20 ~ 90% at 40°C
- Barometric pressure: 96 kPa ~ 103 kPa
- Dimensions: 800mm * 530mm * 610mm (circulating bath and vacuum suction apparatus not included)
Note: The instrument comes standard with four sets of photoelectric Ubbelohde viscometer tube assemblies with inner diameters of 0.8mm, 1.0mm, 1.2mm, and 1.5mm. Custom viscometer configurations are available upon request.
Standard Accessories
| No. | Item | Unit | Qty | Remarks |
|---|---|---|---|---|
| 1 | Vacuum suction device (including specification and factory annex) | Set | 2 | Outsourcing supporting |
| 2 | Optical components viscometer (0.8mm, 1.0mm, 1.2mm, 1.5mm inner diameters) | Set | 4 total | |
| 3 | Washing liquid pipe | Piece | 2 | |
| 4 | Power supply wire (250V 10A) | Piece | 1 | |
| 5 | Fuse (Φ5 * 20, 10A) | Piece | 2 | |
| 6 | Printer paper | Root | 2 |
