RCZ-Y12A Automatic dissolution sampling system, 10~300RPM
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |

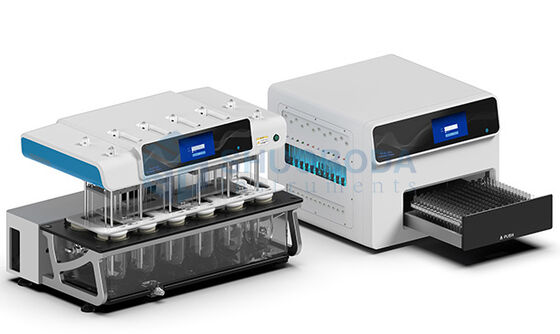

RCZ-Y12A Automatic dissolution sampling system
The RCZ-Y12A automatic dissolution sampling system is composed of shuoboda DP-RC-12A intelligent drug dissolution tester and DP-RC-Y12A automatic sampling system. It is upgraded and developed in strict compliance with the current "Chinese Pharmacopoeia" and "Guiding Principles for Mechanical Validation of Drug Dissolution Instruments" A 12-channel high-performance drug dissolution testing device that fully complies with data integrity specifications.
Product Features:
It has built-in three-level user rights management, audit tracking, and test record management. Through the device interface, test reports can be printed or output via USB.
Commonly used sample information management for easy retrieval and use.
Commonly used test plans are managed for easy retrieval and use.
High-precision real-time constant temperature control, independent temperature measurement for each dissolution vessel, dual over-temperature protection and temperature calibration functions.
There is scheduled heating inside, and the user can set the system to start heating at a specified time.
Manual and automatic synchronized dosing functions.
Manual and automatic sampling dual modes.
Split agitator design, quick replacement.
The dissolution vessel and stirrer are automatically centered.
Sealed anti-evaporation cover design effectively reduces medium evaporation.
Use a more convenient water circulation pipeline design and professional medical grade quick connectors.
Use high-precision syringe pump.
When sampling, the sampling needle enters the dissolution vessel to avoid disturbing the flow.
The sample is replenished isothermally.
Secondary filtering can be performed.
The system automatically rinses the pipeline before sampling and automatically empties the pipeline after sampling.
IQ/OQ certification documents are provided free of charge.
Specifications:
|
Product model |
RCZ-Y12A |
|
|
Dissolution apparatus parameters
|
Dissolution channel |
12 channels |
|
Stirring paddle swing range |
≤0.5mm |
|
|
Basket swing range |
≤1.0mm |
|
|
Deviation of rotary rod and dissolution vessel axis |
≤1.0mm |
|
|
Speed setting range |
10~300RPM |
|
|
Steady speed error |
≤±1% |
|
|
Temperature range |
Room temperature~45.0°C |
|
|
Temperature resolution |
0.1°C |
|
|
Temperature control accuracy |
≤±0.3°C |
|
|
Sampler parameters |
sampling channel |
12 channels |
|
Sampling times |
≤15 times |
|
|
Sampling timing time |
≤999 hours, 59 minutes and 59 seconds |
|
|
Sampling volume, replenishment volume |
≤10ml |
|
|
Sampling accuracy |
≤±1%, sampling volume 10ml, average value of each channel |
|
|
Sampling interval |
1 minute for the first time, 2~5 minutes thereafter (depending on the sampling volume) |
|
|
sample collection bottle |
180 |
|
|
Power |
AC220V±10% 50HZ |
|
