DP-RC-12HD Table Drug Dissolution Test Device 12 Cups High Performance

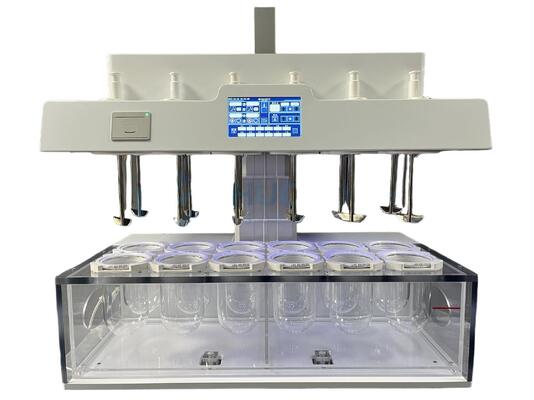

DP-RC-12HD Drug Dissolution Tester

DP-RC-12HD dissolution tester is a high-performance 12-cup and 12-bar dissolution test device designed and manufactured strictly in accordance with the provisions of the Chinese Pharmacopoeia and the United States Pharmacopoeia. It has high intelligence, advanced structure, accurate control and reliability. good. The integrated design of the PC cup plate and the water bath box has a beautiful appearance and is convenient for observing the test process from multiple angles. High temperature resistance, corrosion resistance, extended service life.

Performance and technical parameters:

1. Number of devices: 12 cups and 12 rods. (An isothermal rehydration cup can be added).

2. Speed zone: (6+6) 2 working areas, which can complete 2 batches of dissolution tests at the same time.

3. Dosing methods: simultaneous dosing and sequential dosing.

4. The intelligent sampling rack can automatically rise and fall according to the volume of the solvent, and has functions such as real-time monitoring of the temperature in the cup.

5. Applicable methods: Method 1 (basket method), method 2 (paddle method), method 3 (small cup method), method 4 (paddle-disk method), and method 5 (rotating drum method) of the Chinese Pharmacopoeia.

6. The specifications of the stirring paddle and rotating basket comply with the pharmacopoeia regulations.

7. Stirring paddle swing range: ≤0.3mm

8. Stirring speed: 25RPM-250RPM. (The stirring speed can be adjusted to 300RPM)

9. Stirring direction: clockwise, counterclockwise.

10. Stirring speed resolution: 0.01RPM.

11. Speed error: ≤0.5%.

12. Basket swing range: ≤0.5mm

13. Deviation of rotating rod and dissolution vessel axis: ≤0.5mm

14. Water bath temperature: room temperature -45.00℃. (The heating temperature can be selected to 55℃)

15. Temperature resolution: 0.01℃.

16. Water bath temperature control accuracy: 0.2℃.

17. Dissolution medium temperature control accuracy: 0.2°C.

18. Dosing mode: simultaneous dosing.

19. Lifting system: Bamboo square column lifting.

20. Permission management: three levels, seven users.

21. Audit trail: 128 × 366 days.

22. Working noise: <60db

23. Environmental conditions: ambient temperature 5-37℃, relative humidity ≤80%

24. Safety performance: in line with national industry standards, with self-check and automatic protection functions

25. Power supply: 220V, 50Hz

26. Additional optional items need to be purchased separately.
