Intelligent Drug Dissolution Testing Machine High Precision DP-RC-6N
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Drug Dissolution Testing Machine
,Intelligent Dissolution Testing Machine

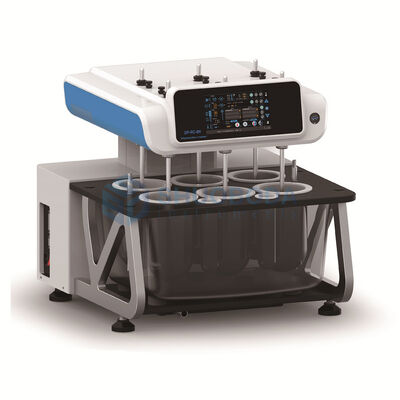

DP-RC-6N Intelligent drug dissolution tester
DP-RC-6N Intelligent drug dissolution meter adopts international advanced design concept and manufacturing technology, the shape is smooth and beautiful, the structure is compact and stable, adhering to the advantages of highly reliable performance and simple operation. At the same time, it has the characteristics of “accurate speed”, “stable operation” and “low energy consumption”. This product is widely used in pharmaceutical factories, medical research, teaching and research and drug inspection departments. The technical indicators are in full compliance with the "Chinese Pharmacopoeia 2015 Edition" and generic drug conformity evaluation standards.
Product Features
It is in full compliance with the Chinese Pharmacopoeia 2015 Edition and generic drug conformity evaluation standards.
Built-in user management, data management system, and long-term storage of test data.
More accurate integrated circuit design to ensure measurement accuracy.
More complete, simple and user-friendly operation interface and method.
6 baskets or paddles (optional Teflon coating) can be installed, and 6 185mm high-precision vessels can be placed.
The system preset temperature is 37 °C, and the user can reset the preset temperature at any time.
High-precision real-time constant temperature control, fast heating, low temperature drift, over temperature protection and temperature calibration.
More precise temperature control system; more convenient drainage system.
The speed is more accurate, the operation is stable, the energy consumption is low, and the reliability is high.
With fault self-diagnosis function; detection data can be exported and printed by USB.
Optional small cup method (for the third method of dissolution determination).
Specifications:
|
Product model |
DP-RC-6N |
|
Stirring paddle swing amplitude |
≤0.5 mm |
|
Basket swing range |
≤1.0 mm |
|
Deviation between the rotating rod and the vessel axis |
≤2.0 mm |
|
Speed setting range |
10-300 rpm/min |
|
turn around |
Clockwise/counterclockwise |
|
Steady speed error |
≤±1 rpm/min |
|
Temperature range |
Room temperature ~ 45.0 ° C |
|
Temperature resolution |
0.1 °C |
|
Temperature control accuracy |
≤±0.3 °C |
|
Sampling cycle points |
Up to 100 different sampling periods |
|
Sampling cycle time |
1 minute ~ 99 hours 59 minutes |
|
Number of paddles and baskets |
6 each |
|
Number of baskets |
6 pcs |
|
High precision dissolution cup specifications |
Height 185mm, volume 1000ml |
|
High-precision vessel number |
6 pcs |
|
power supply |
AC220V±10%, 50Hz |
Products Gallery
