DP-RC-3ST Drug Dissolution Tester 3 Cups 500W Speed Resolution 1 Rpm

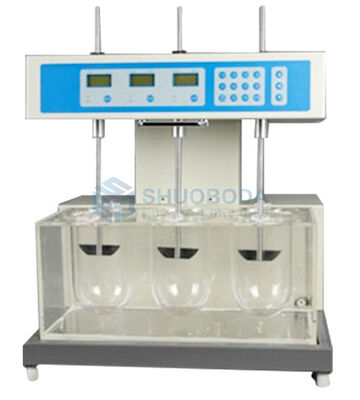

DP-RC-3ST Drug Dissolution Tester

 With dual functions of electric head lift and head flip

The DP-RC-3ST dissolution tester is used to check the dissolution rate and extent of solid preparations such as pharmaceutical tablets or capsules in specified solvents. It is a practical new drug dissolution tester developed and produced by shuoboda. It adopts a classic design and is cost-effective, stable and reliable, easy to operate and durable.

Main Features:

DP-RC-3ST is a dual-function machine with electric head lift and head flip. When replacing the pulp rod or basket rod, you only need to operate the keyboard, and the machine head will automatically rise. You can also continue to flip the machine head while the machine head is raised. Make pulp changing operation more convenient and handier.

•  Can install 3 basket poles or paddle poles.
•  Can install three new dissolution vessels with a height of 185mm.
•  Friendly human-machine interface, simple and convenient operation.
•  All working parameters can be preset and automatically stored, so there is no need to repeat settings next time the machine is turned on.
•  Accurate speed, smooth operation and low energy consumption.
•  The constant temperature water bath adopts a built-in integrated temperature sensor and new software and hardware temperature measurement and control methods. It heats up quickly and has high accuracy. The temperature deviation can be easily corrected with software.
•  The test timing can be started, paused and reset independently.
•  Has automatic protection functions such as self-check fault alarm and overheating protection.
•  The pulp rod, basket rod and rotating basket body are made of high-quality stainless steel materials, and their quality and performance meet the requirements of the Chinese Pharmacopoeia.

Main technical specifications:

•  Swing range of mixing paddle: ≤0.3mm
•  Swing range of basket: ≤0.8mm
•  Deviation of rotating rod and dissolution vessel axis: ≤1mm
•  Speed adjustment range: 20-200 rpm
•  Speed resolution: 1 rpm
•  Water bath temperature adjustment range: room temperature-45℃
•  Temperature resolution: 0.1℃
•  Temperature control accuracy: ≤±0.3℃
•  Number of sampling cycles: 9 different sampling cycles can be preset.
•  Sampling cycle time: You can choose from 1 to 999 minutes per cycle, and the 9 sampling cycles can be counted down in stages.
•  Timing error: ±0.5min
•  Pharmacopoeia parameter calling: 300 dissolution test parameters of the "Chinese Pharmacopoeia" are stored in the machine and can be called randomly.
•  Large-screen LCD display and intelligent menu-based operation.
•  The machine head can be raised and lowered automatically and comes with a flip function (a model that is particularly convenient to operate).
•  Electronic sensors can monitor the temperature at various points in the water bath.
•  Standard configuration: 3 pulp and 3 cups
•  Electric heating power: 500W
