DP-RC-8N Intelligent Drug Dissolution Tester Instrument
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Intelligent Drug Dissolution Tester
,Drug Dissolution Tester Instrument

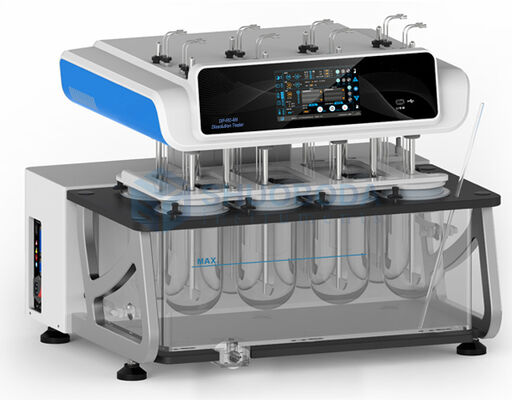

DP-RC-8N Intelligent drug dissolution tester
DP-RC-8N intelligent drug dissolution instrument strictly follows the current Chinese Pharmacopoeia and United States Pharmacopoeia specifications and the "Guiding Principles for Mechanical Validation of Drug Dissolution Apparatus". It is an 8-channel high-performance drug dissolution test device and fully complies with data integrity specification.
Product Features:
- It has built-in three-level user rights management, audit tracking, and test record management. Through the device interface, test reports can be printed or output via USB.
- Commonly used sample information management for easy retrieval and use.
- High-precision real-time constant temperature control, with dual over-temperature protection and temperature calibration functions.
- There is scheduled heating inside, and the user can set the system to start heating at a specified time.
- Manual synchronized dosing function.
- The dissolution vessel and stirrer are automatically centered.
- Sealed anti-evaporation cover design effectively reduces medium evaporation.
- Use a more convenient water circulation pipeline design and professional medical grade quick connectors.
- IQ/OQ certification documents are provided free of charge.
- Optional small cup method accessories (for the third method of dissolution determination).
Specifications:
|
Product model |
DP-RC-8N |
|
Stirring paddle swing amplitude |
≤0.5 mm |
|
Basket swing range |
≤1.0 mm |
|
Deviation between the rotating rod and the vessel axis |
≤1.0 mm |
|
Speed setting range |
10-300 rpm/min |
|
turn around |
Clockwise/counterclockwise |
|
Steady speed error |
≤±1 rpm/min |
|
Temperature range |
Room temperature ~ 45.0 ° C |
|
Temperature resolution |
0.1 °C |
|
Temperature control accuracy |
≤±0.3 °C |
|
Sampling cycle points |
Up to 100 different sampling periods |
|
Sampling cycle time |
1 minute ~ 99 hours 59 minutes |
|
Number of paddles and baskets |
8 each |
|
Number of baskets |
8 pcs |
|
High precision dissolution cup specifications |
Height 185mm, volume 1000ml |
|
High-precision vessel number |
8 pcs |
|
power supply |
AC220V±10%, 50Hz |
