DP-RC-8ST 8 Cups Drug Dissolution Test Machine For Pharmaceutical Tablets

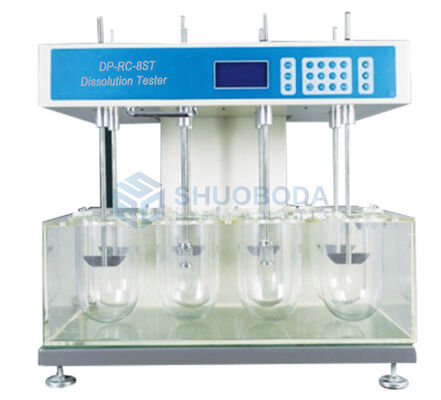

DP-RC-8ST Drug Dissolution Tester

With 4 cups in front, 4 cups behind

   The DP-RC-8ST dissolution tester is used to check the dissolution rate and extent of solid preparations such as pharmaceutical tablets or capsules in specified solvents. It is a practical new drug dissolution tester developed and produced by our company. It adopts a classic design and is cost-effective, stable and reliable, easy to operate and durable.

Main features:

•  Can install 8 basket poles or paddle poles.
• DP-RC-8ST is a dual-function machine with electric head lifting and head flipping. To replace the pulp rod or basket rod, you only need to operate the keyboard, and the machine head will automatically rise. You can also continue to flip the machine head while the machine head is raised, making the pulp changing operation more convenient and handy.
•  Eight new dissolution vessels with a height of 185mm can be installed, and light-shielding dissolution vessels can also be installed.
•  Friendly human-machine interface, simple and convenient operation.
•  All working parameters can be preset and automatically stored, so there is no need to repeat settings next time the machine is turned on.
•  Accurate speed, smooth operation and low energy consumption.
•  The constant temperature water bath adopts a built-in integrated temperature sensor and new software and hardware temperature measurement and control methods. It heats up quickly and has high accuracy. The temperature deviation can be easily corrected with software.
•  The test timing can be started, paused and reset independently.
•  Has automatic protection functions such as self-check fault alarm and overheating protection.
•  The pulp rod, basket rod and rotating basket body are made of high-quality stainless-steel materials, and their quality and performance meet the requirements of the Chinese Pharmacopoeia.

Main technical specifications:

•  Stirring paddle swing range: ≤0.3mm
•  Basket swing range: ≤0.8mm
•  Deviation of rotating rod and dissolution vessel axis: ≤1mm
•  Speed adjustment range: 20-200 rpm
•  Speed resolution: 1 rpm
•  Water bath temperature adjustment range: room temperature -45℃
•  Temperature resolution: 0.1℃
•  Temperature control accuracy: ≤±0.3℃
•  Number of sampling cycles: 9 different sampling cycles can be preset.
•  Sampling cycle time: You can choose from 1 to 999 minutes per cycle, and the 9 sampling cycles can be counted down in sections.
•  Timing error: ±0.5min
•  Pharmacopoeia parameter calling: 300 dissolution test parameters of the Chinese Pharmacopoeia are stored in the machine and can be called randomly.
•  Large-screen LCD display and intelligent menu-based operation.
•  The machine head can be raised and lowered automatically and comes with a flip function (a model that is particularly convenient to operate).
•  Electronic sensors monitor the temperature at various points in the water bath.
•  Standard configuration: 8 pulp and 8 cups
•  Optional small cup method accessories.
•  Electric heating power: 1100W
