DP-RC-12A Intelligent drug dissolution tester, 10~300RPM
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |

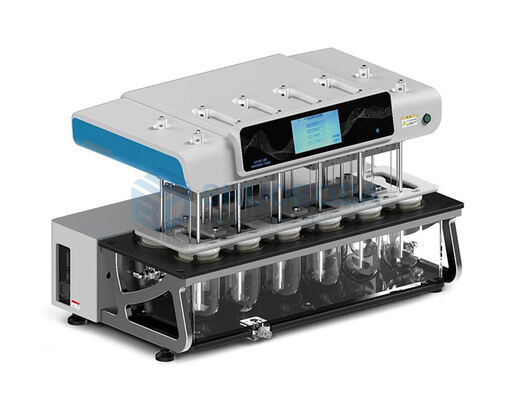

DP-RC-12A Intelligent drug dissolution tester
The DP-RC-12A intelligent drug dissolution instrument strictly follows the current Chinese Pharmacopoeia and United States Pharmacopoeia specifications and the "Guiding Principles for Mechanical Validation of Drug Dissolution Apparatus". It is an upgraded and developed 12-channel high-performance drug dissolution test device that fully complies with Data integrity specifications.
Can be equipped with DP-RC-Y12A sampling system to form a dissolution automatic sampling system.
Product Features:
It has built-in three-level user rights management, audit tracking, and test record management. Through the device interface, test reports can be printed or output via USB.
Commonly used sample information management for easy retrieval and use
Commonly used test plans are managed for easy retrieval and use.
High-precision real-time constant temperature control, independent temperature measurement for each dissolution vessel, dual over-temperature protection and temperature calibration functions.
There is scheduled heating inside, and the user can set the system to start heating at a specified time.
Manual and automatic synchronized dosing functions.
Manual and automatic sampling dual modes.
Split agitator design, quick replacement.
The dissolution vessel and stirrer are automatically centered.
Sealed anti-evaporation cover design effectively reduces medium evaporation.
Use a more convenient water circulation pipeline design and professional medical grade quick connectors.
IQ/OQ certification documents are provided free of charge.
Specifications:
|
Product model |
DP-RC-12A |
|
Dissolution channel |
12 channels |
|
Stirring paddle swing range |
≤0.5mm |
|
Basket swing range |
≤1.0mm |
|
Deviation of rotary rod and dissolution vessel axis |
≤1.0mm |
|
Speed setting range |
10~300RPM |
|
Steady speed error |
≤+1% |
|
Temperature range |
Room temperature~45.0°C |
|
Temperature resolution |
0.1°C |
|
Temperature control accuracy |
≤±0.3°C |
|
Sampling times |
≤100 times |
|
Sampling timing time |
≤999 hours, 59 minutes and 59 seconds |
|
power supply |
AC220V±10% 50Hz |
